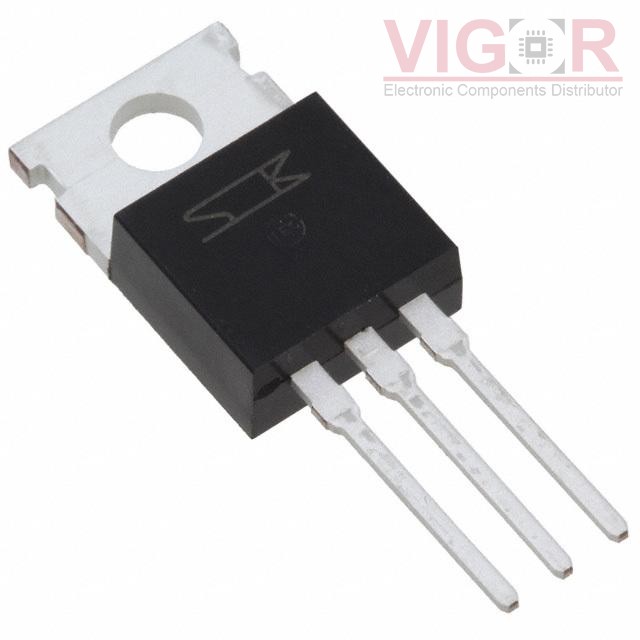

EKV550

Part No :: EKV550

Manufacturer: Sanken Electric Co., Ltd.

Description: MOSFET N-CH 50V 50A TO220

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: EKV550 PDF

Availability: 0 pieces

Current price of EKV550 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EKV550 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	50 V
Current - Continuous Drain (Id) @ 25°C:	50A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	15mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	4.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2000 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	85W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220
Package / Case:	TO-220-3
