TN2106K1-G

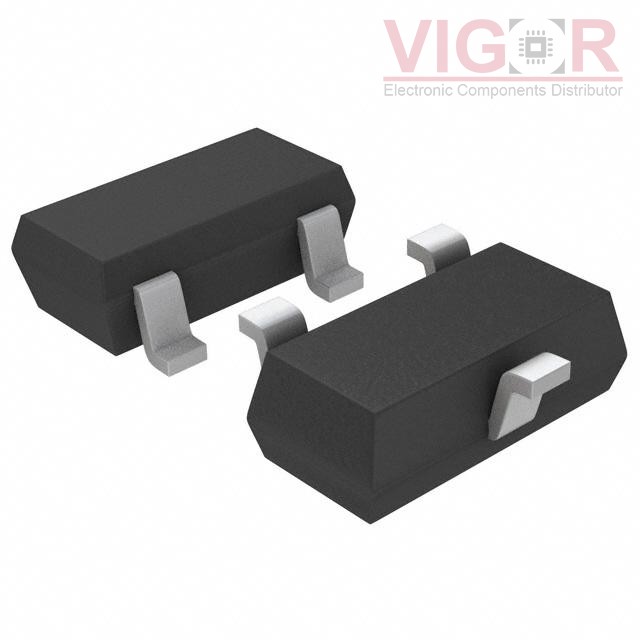

Image is for reference,
please contact us to get the real picture

Part No :: TN2106K1-G

Manufacturer: Roving Networks / Microchip Technology

Description: MOSFET N-CH 60V 280MA TO236AB

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TN2106K1-G PDF

Availability: 9556 pieces

Unit Price: ~~$0.50000~~

Current price of TN2106K1-G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TN2106K1-G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	280mA (Tj)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	2.5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id:	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	50 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	360mW (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-236AB (SOT23)
Package / Case:	TO-236-3, SC-59, SOT-23-3

Please confirm the specifications of the products when ordering.
