UF3C120080B7S

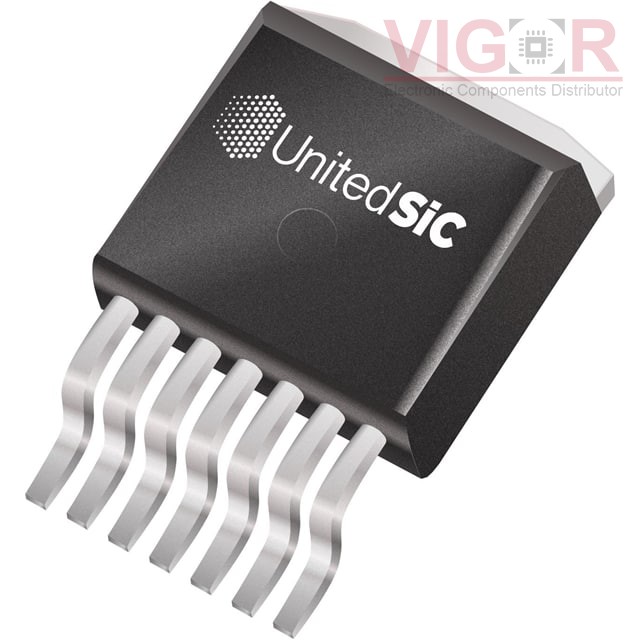

Image is for reference,
please contact us to get the real picture

Part No :: UF3C120080B7S

Manufacturer: UnitedSiC

Description: SICFET P-CH 1200V 28.8A D2PAK-7

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: UF3C120080B7S PDF

Availability: 720 pieces

Unit Price: ~~$12.27000~~

Current price of UF3C120080B7S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

UF3C120080B7S Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Cascode SiCJFET)
Drain to Source Voltage (Vdss):	1200 V
Current - Continuous Drain (Id) @ 25°C:	28.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	105mOhm @ 20A, 12V
Vgs(th) (Max) @ Id:	6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:	23 nC @ 12 V
Vgs (Max):	±25V
Input Capacitance (Ciss) (Max) @ Vds:	754 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	190W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D2PAK-7
Package / Case:	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA

Please confirm the specifications of the products when ordering.
