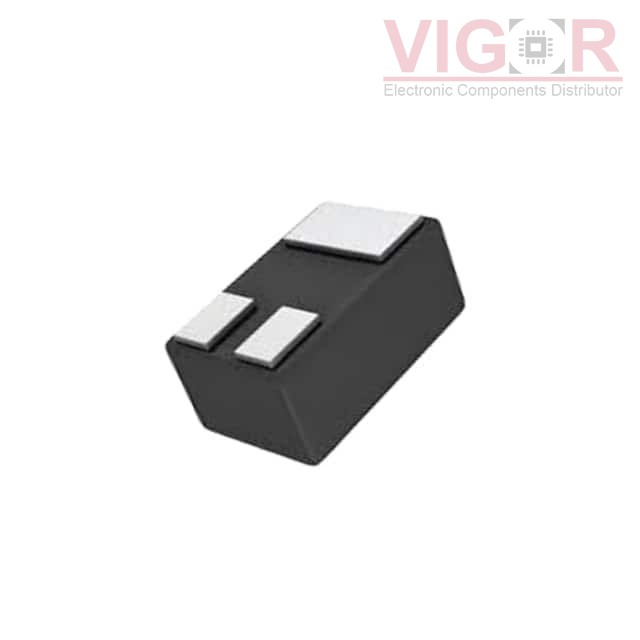

RMA7N20ED1

Part No :: RMA7N20ED1

Manufacturer: Rectron USA

Description: MOSFET N-CH 20V 700MA DFN1006-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: RMA7N20ED1 PDF

Availability: 0 pieces

Current price of RMA7N20ED1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RMA7N20ED1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	700mA (Tc)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	260mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id:	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	40 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	550mW (Ta)
Operating Temperature:	-50°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DFN1006-3
Package / Case:	SC-101, SOT-883

Please confirm the specifications of the products when ordering.
