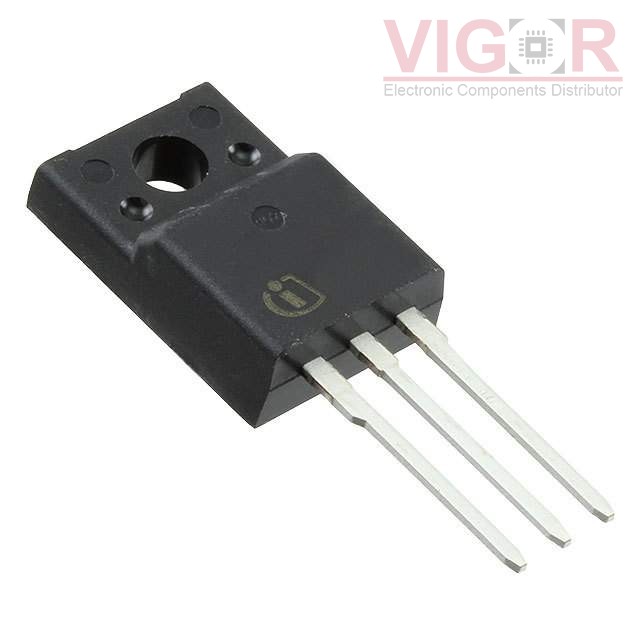

SPA06N80C3XKSA1

Part No :: SPA06N80C3XKSA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 800V 6A TO220-FP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SPA06N80C3XKSA1 PDF

Availability: 5594 pieces

Current price of SPA06N80C3XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SPA06N80C3XKSA1 Specifications

Type	Description
Series:	CoolMOS™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	800 V
Current - Continuous Drain (Id) @ 25°C:	6A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	900mOhm @ 3.8A, 10V
Vgs(th) (Max) @ Id:	3.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	41 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	785 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	39W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	PG-TO220-FP
Package / Case:	TO-220-3 Full Pack

Please confirm the specifications of the products when ordering.
