PXN017-30QLJ

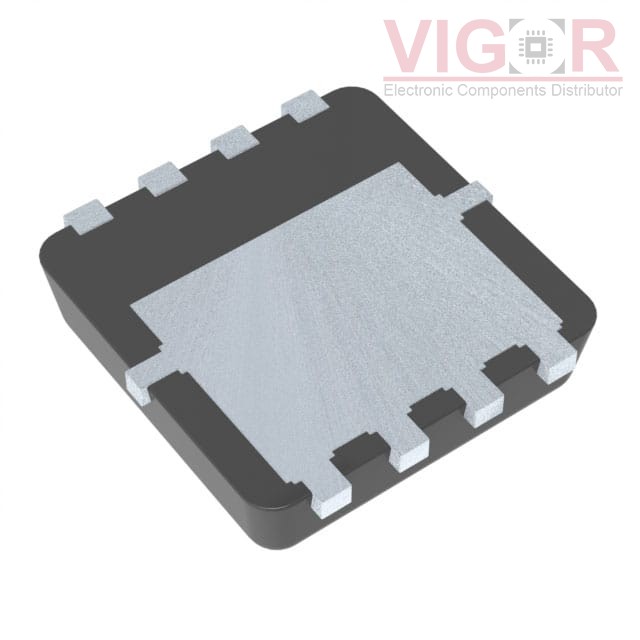

Image is for reference,
please contact us to get the real picture

Part No :: PXN017-30QLJ

Manufacturer: Nexperia

Description: PXN017-30QL/SOT8002/MLPAK33

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: PXN017-30QLJ PDF

Availability: 3000 pieces

Unit Price: ~~$0.41000~~

Current price of PXN017-30QLJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PXN017-30QLJ Specifications

Type	Description
Series:	TrenchMOS™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	7.9A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	17.4mOhm @ 7.9A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	7.7 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	350 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	1.7W (Ta), 10.9W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	MLPAK33
Package / Case:	8-PowerVDFN
