PH6030L,115

PH6030L,115

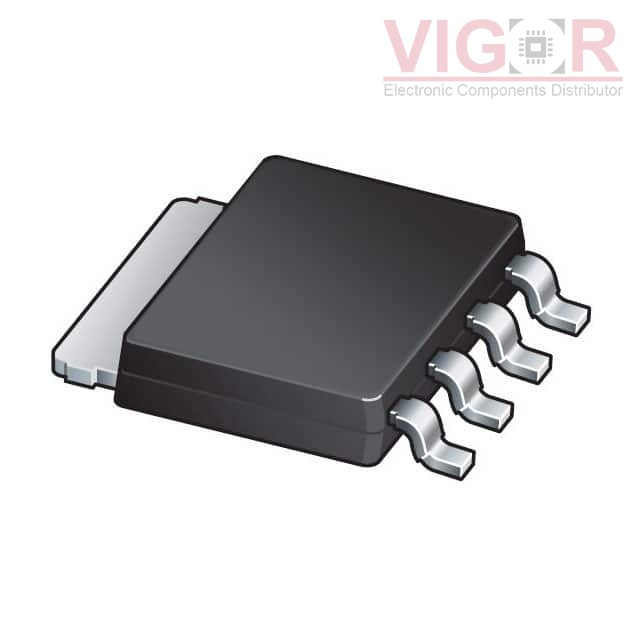

Image is for reference,
please contact us to get the real picture

Part No :

PH6030L,115

Manufacturer
NXP Semiconductors
Description
MOSFET N-CH 30V 76.7A LFPAK56
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Nov 01 - Nov 05 2025
DataSheet
PH6030L,115 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PH6030L,115 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PH6030L,115 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:76.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:6mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:15.2 nC @ 4.5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2260 pF @ 12 V
FET Feature:-
Power Dissipation (Max):62.5W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:LFPAK56, Power-SO8
Package / Case:SC-100, SOT-669
