STD100N10LF7AG

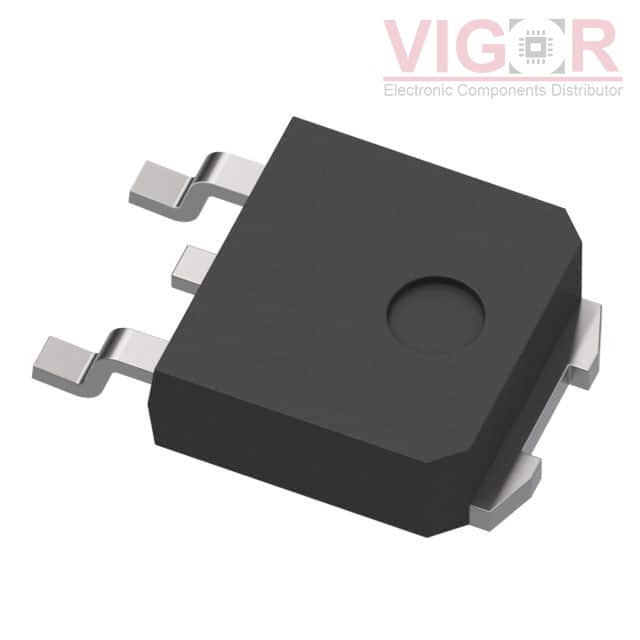

Image is for reference,
please contact us to get the real picture

Part No :: STD100N10LF7AG

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 100V 80A DPAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: STD100N10LF7AG PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of STD100N10LF7AG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STD100N10LF7AG Specifications

Type	Description
Series:	Automotive, AEC-Q101, STripFET™ F7
Package:	Tape & Reel (TR)
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	9mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	73 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	4000 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	125W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DPAK
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63

Please confirm the specifications of the products when ordering.
