FDU3706

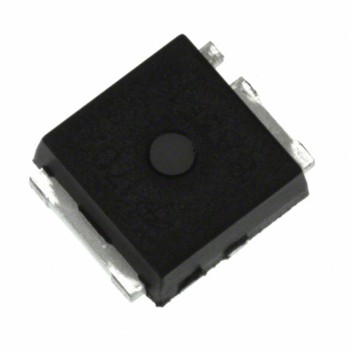

Image is for reference,
please contact us to get the real picture

Part No :: FDU3706

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 20V 14.7A/50A IPAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDU3706 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of FDU3706 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDU3706 Specifications

Type	Description
Series:	PowerTrench®
Package:	Tube
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	14.7A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 10V
Rds On (Max) @ Id, Vgs:	9mOhm @ 16.2A, 10V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	23 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	1882 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	3.8W (Ta), 44W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	I-PAK
Package / Case:	TO-251-3 Short Leads, IPak, TO-251AA

Please confirm the specifications of the products when ordering.
