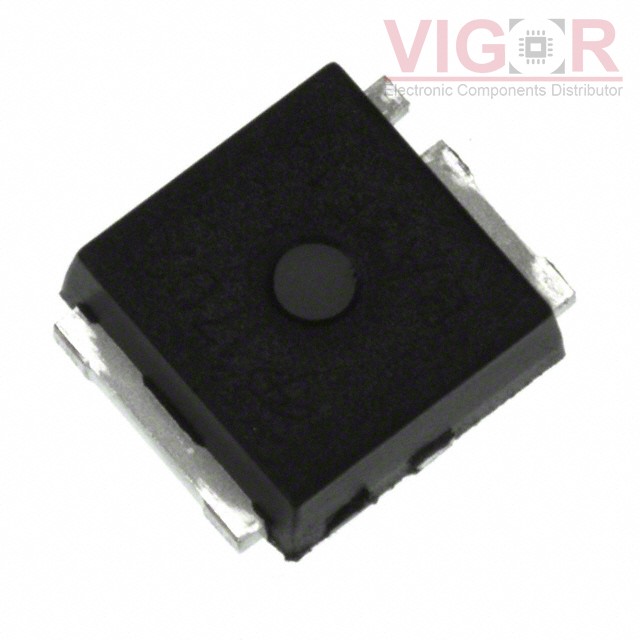

AOL1404

Part No :: AOL1404

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET N-CH 20V 18A/45A ULTRASO8

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: AOL1404 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of AOL1404 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AOL1404 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	18A (Ta), 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	4mOhm @ 20A, 4.5V
Vgs(th) (Max) @ Id:	1.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	43 nC @ 10 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	4630 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	2.1W (Ta), 60W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	UltraSO-8™
Package / Case:	3-PowerSMD, Flat Leads

Please confirm the specifications of the products when ordering.
