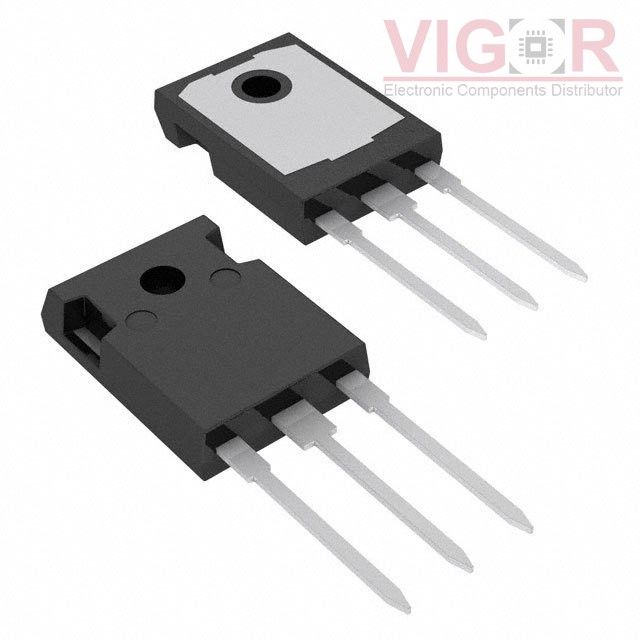

STGWA25H120F2

Product image
Product thumb
Part No :

STGWA25H120F2

Manufacturer
STMicroelectronics
VIGOR # :

2914246

Description
IGBT HB 1200V 25A HS TO247-3
Catalog
Transistors - IGBTs - Single
DataSheet
STGWA25H120F2 PDF
Country of origin
-
Date code
-
ads
STGWA25H120F2 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):50 A
Current - Collector Pulsed (Icm):100 A
Vce(on) (Max) @ Vge, Ic:2.6V @ 15V, 25A
Power - Max:375 W
Switching Energy:600µJ (on), 700µJ (off)
Input Type:Standard
Gate Charge:100 nC
Td (on/off) @ 25°C:29ns/130ns
Test Condition:600V, 25A, 10Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247-3
