CMF23H-103231-B

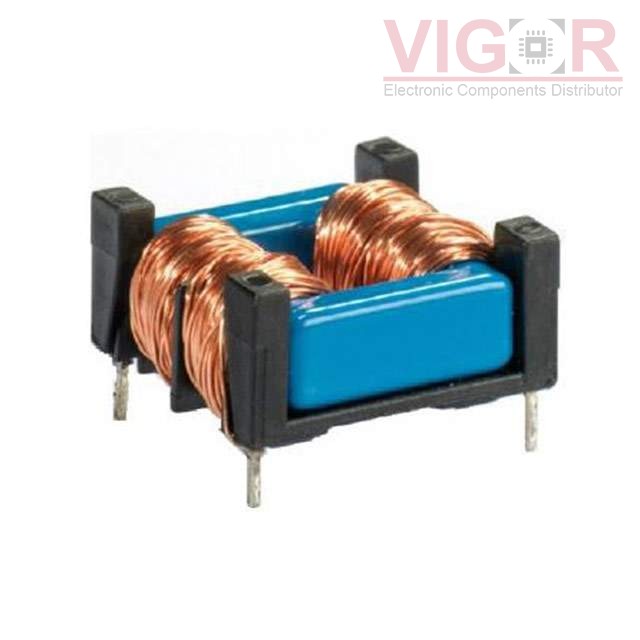

Image is for reference,
please contact us to get the real picture

Part No :: CMF23H-103231-B

Manufacturer: Triad Magnetics

Description: CMC 10MH 2.3A 2LN TH

Catalog: Common Mode Chokes

DataSheet: CMF23H-103231-B PDF

Availability: 0 pieces

Unit Price: ~~$2.25600~~

Current price of CMF23H-103231-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CMF23H-103231-B Specifications

Type	Description
Series:	CMF
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	10 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2.3A
DC Resistance (DCR) (Max):	210mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.043" L x 0.976" W (26.50mm x 24.80mm)
Height (Max):	0.551" (14.00mm)
Package / Case:	Vertical, 4 PC Pin
