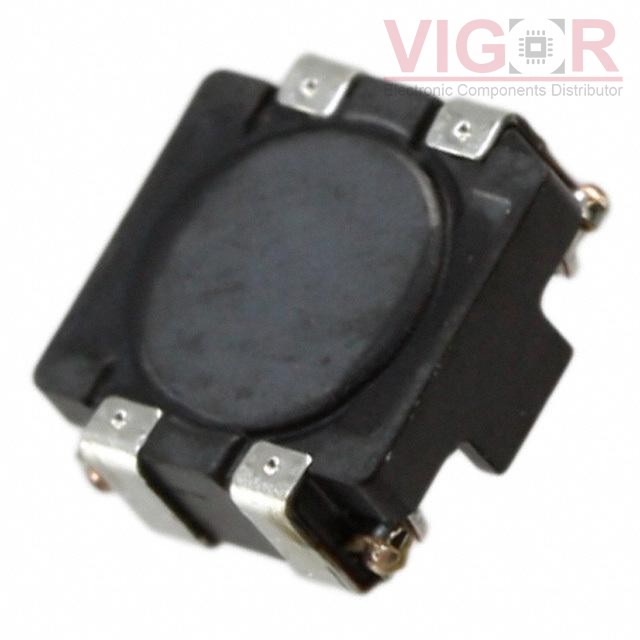

ACM4520-142-2P-TL000

Part No :: ACM4520-142-2P-TL000

Manufacturer: TDK Corporation

VIGOR # :: 4036964

Description: CMC 1.5A 2LN 1.4 KOHM SMD

Catalog: Common Mode Chokes

DataSheet: ACM4520-142-2P-TL000 PDF

Country of origin: -

Date code: -

ACM4520-142-2P-TL000 Specifications

Type	Description
Series:	ACM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	1.4 kOhms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.5A
DC Resistance (DCR) (Max):	80mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.185" L x 0.177" W (4.70mm x 4.50mm)
Height (Max):	0.079" (2.00mm)
Package / Case:	Horizontal, 4 PC Pad
