HCTC-20-2.9

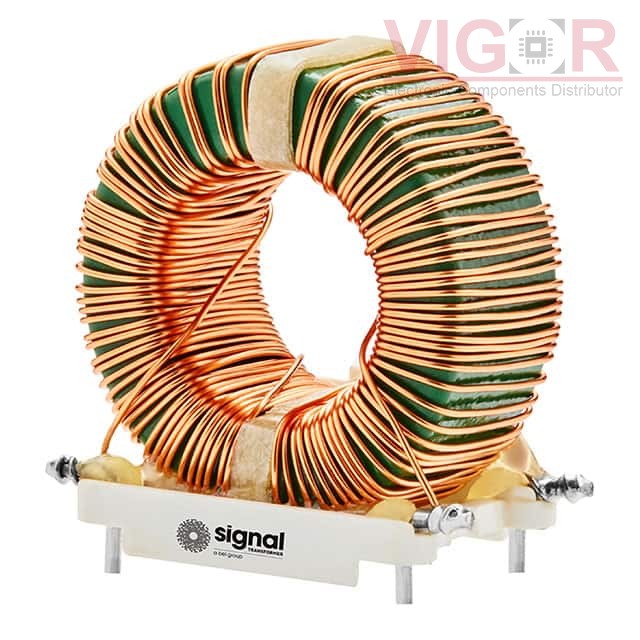

Image is for reference,
please contact us to get the real picture

Part No :: HCTC-20-2.9

Manufacturer: Signal Transformer

Description: HIGH CURRENT TORROIDAL CHOKE

Catalog: Common Mode Chokes

DataSheet: HCTC-20-2.9 PDF

Availability: 0 pieces

Unit Price: ~~$4.17599~~

Current price of HCTC-20-2.9 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCTC-20-2.9 Specifications

Type	Description
Series:	*
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	20 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2.9A
DC Resistance (DCR) (Max):	210mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.350" L x 0.600" W (34.29mm x 15.24mm)
Height (Max):	1.450" (36.83mm)
Package / Case:	Radial, Vertical - 4 Leads
