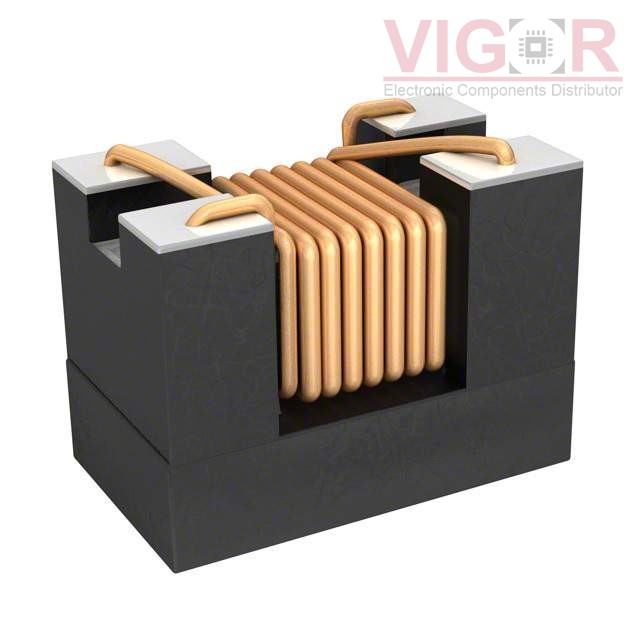

DLW21SN181SQ2L

Image is for reference,
please contact us to get the real picture

Part No :: DLW21SN181SQ2L

Manufacturer: TOKO / Murata

Description: CMC 330MA 2LN 180 OHM SMD

Catalog: Common Mode Chokes

DataSheet: DLW21SN181SQ2L PDF

Availability: 12276 pieces

Unit Price: ~~$0.57000~~

Current price of DLW21SN181SQ2L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DLW21SN181SQ2L Specifications

Type	Description
Series:	DLW21
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	180 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	330mA
DC Resistance (DCR) (Max):	350mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max):	0.055" (1.40mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
