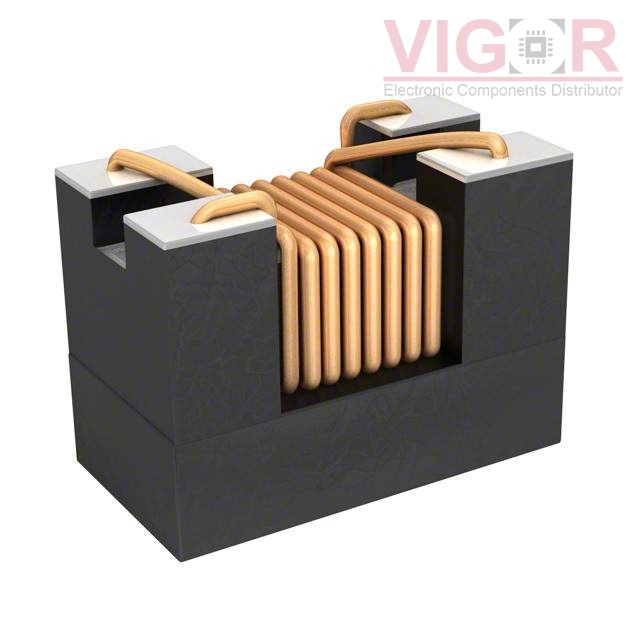

744235601

Part No :: 744235601

Manufacturer: Würth Elektronik Midcom

VIGOR # :: 4037875

Description: CMC 1UH 1.2A 2LN 600 OHM SMD

Catalog: Common Mode Chokes

DataSheet: 744235601 PDF

Country of origin: -

Date code: -

744235601 Specifications

Type	Description
Series:	WE-CNSW
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	600 Ohms @ 100 MHz
Inductance @ Frequency:	1 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.2A
DC Resistance (DCR) (Max):	120mOhm
Voltage Rating - DC:	60V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max):	0.118" (3.00mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3968

Shipped from

HK warehouse

Expected Shipping Date

Oct 02 - Oct 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.6900~~	~~$1.69~~
500	~~$1.1290~~	~~$564.50~~

Current price of 744235601 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

SSRH24NVS-12500

CMC 50MH 1.2A 0.43OHMWIDE IMPEDA

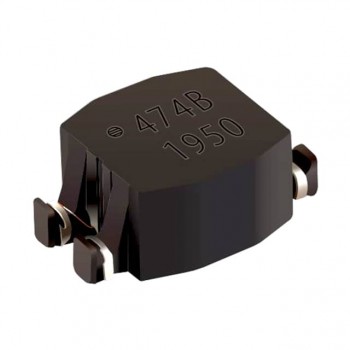

DR334A-253AE

CMC LINE FILTER SMD

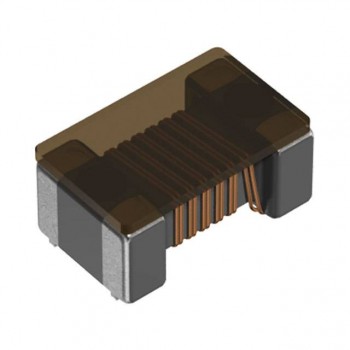

ACM2012E-670-2P-T00
