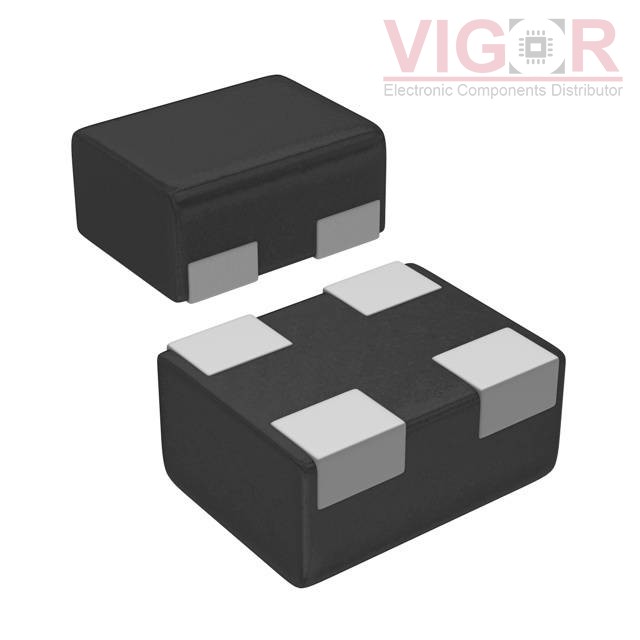

TCM0806S-350-2P

Part No :: TCM0806S-350-2P

Manufacturer: TDK Corporation

Description: CMC 100MA 2LN 35 OHM SMD

Catalog: Common Mode Chokes

DataSheet: TCM0806S-350-2P PDF

Availability: 11373 pieces

Current price of TCM0806S-350-2P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TCM0806S-350-2P Specifications

Type	Description
Series:	TCM-S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	35 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	100mA
DC Resistance (DCR) (Max):	1.5Ohm
Voltage Rating - DC:	10V
Voltage Rating - AC:	-
Operating Temperature:	-25°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max):	0.018" (0.45mm)
Package / Case:	0302 (0806 Metric), 4 Lead
