DLP11SN281HL2L

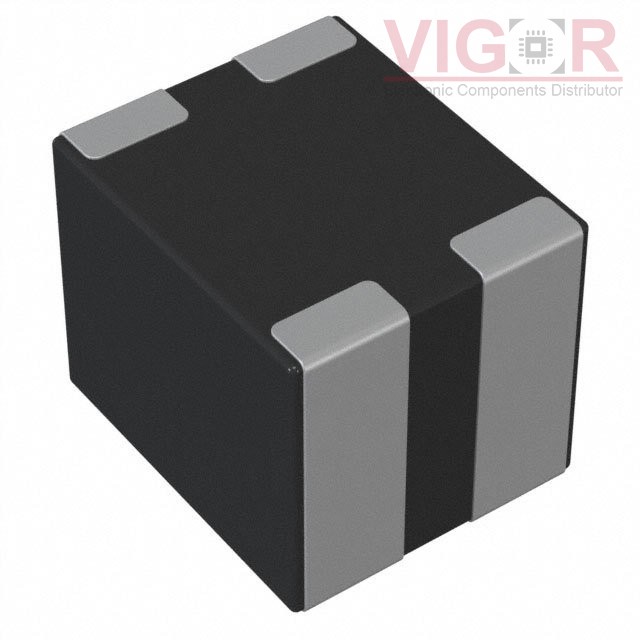

Image is for reference,
please contact us to get the real picture

Part No :: DLP11SN281HL2L

Manufacturer: TOKO / Murata

Description: CMC 90MA 2LN 280 OHM SMD

Catalog: Common Mode Chokes

DataSheet: DLP11SN281HL2L PDF

Availability: 581 pieces

Unit Price: ~~$0.41000~~

Current price of DLP11SN281HL2L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DLP11SN281HL2L Specifications

Type	Description
Series:	DLP11
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	280 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	90mA
DC Resistance (DCR) (Max):	5.25Ohm
Voltage Rating - DC:	5V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max):	0.036" (0.92mm)
Package / Case:	0504 (1210 Metric), 4 Lead
