ACT1210D-101-2P-TL00

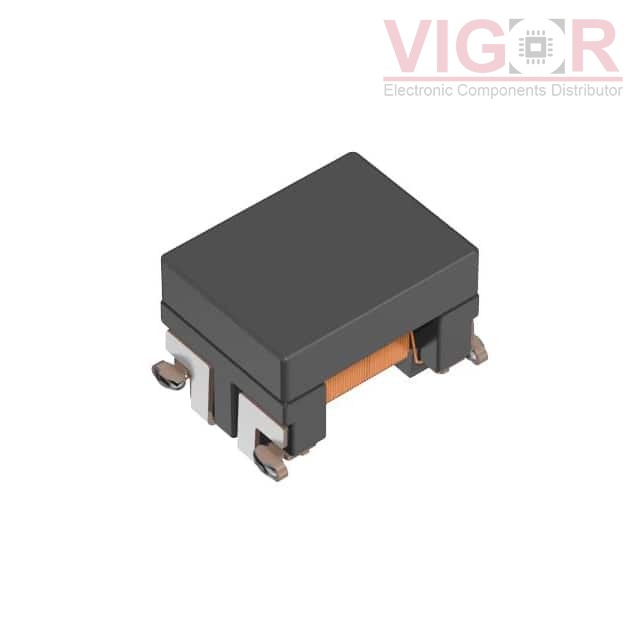

Image is for reference,
please contact us to get the real picture

Part No :: ACT1210D-101-2P-TL00

Manufacturer: TDK Corporation

Description: COMMON MODE FILTERS FOR AUTOMOTI

Catalog: Common Mode Chokes

DataSheet: ACT1210D-101-2P-TL00 PDF

Availability: 10800 pieces

Unit Price: ~~$1.79000~~

Current price of ACT1210D-101-2P-TL00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACT1210D-101-2P-TL00 Specifications

Type	Description
Series:	ACT1210
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	5.1 kOhms @ 10 MHz
Inductance @ Frequency:	100 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	150mA
DC Resistance (DCR) (Max):	1.5Ohm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 150°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max):	0.098" (2.50mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
