SCR22-060-1R0A075JH

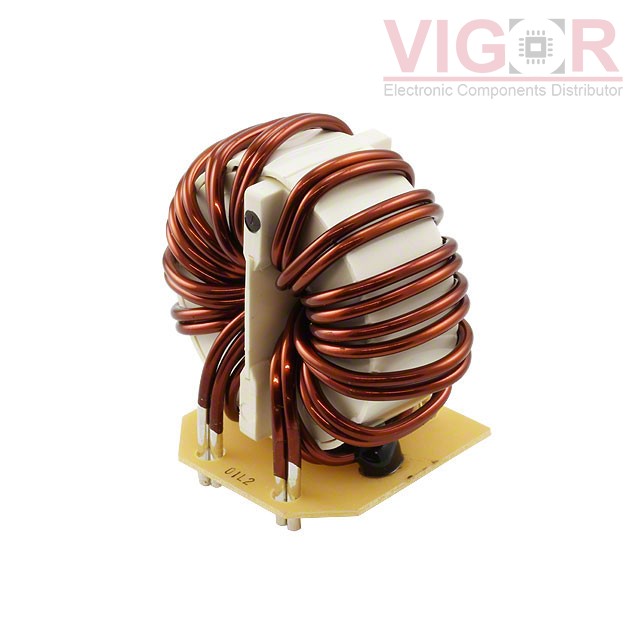

Image is for reference,
please contact us to get the real picture

Part No :: SCR22-060-1R0A075JH

Manufacturer: KEMET

Description: CMC 7.5MH 6.0A 0.042OHM TH

Catalog: Common Mode Chokes

DataSheet: SCR22-060-1R0A075JH PDF

Availability: 110 pieces

Unit Price: ~~$5.50000~~

Current price of SCR22-060-1R0A075JH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SCR22-060-1R0A075JH Specifications

Type	Description
Series:	SCR
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	7.5 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	6A
DC Resistance (DCR) (Max):	42mOhm
Voltage Rating - DC:	250V
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.142" L x 0.906" W (29.00mm x 23.00mm)
Height (Max):	1.142" (29.00mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
