BGF106CE6328XTSA1

BGF106CE6328XTSA1

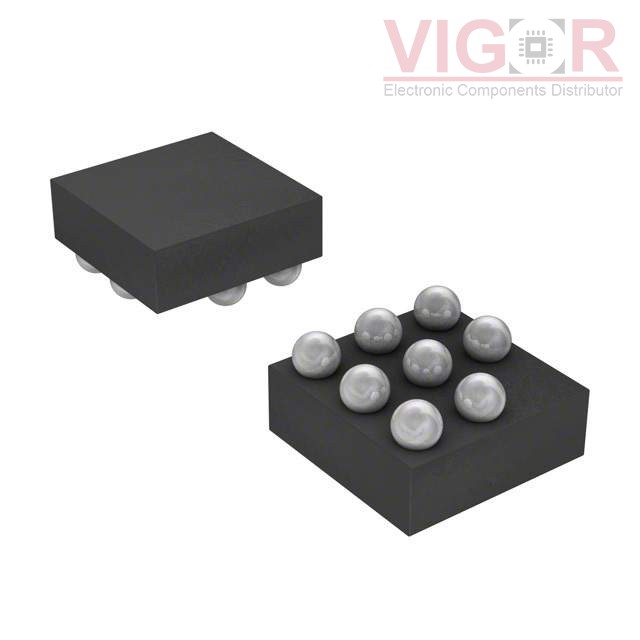

Image is for reference,
please contact us to get the real picture

Part No :

BGF106CE6328XTSA1

Manufacturer
VIGOR
Description
DATA LINE FILTER
Catalog
EMI/RFI Filters (LC, RC Networks)
Shipped from
HK warehouse
Expected Shipping Date
Oct 01 - Oct 05 2025
DataSheet
BGF106CE6328XTSA1 PDF
Availability
0 pieces
Unit Price
$0.07998

Current price of BGF106CE6328XTSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BGF106CE6328XTSA1 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Type:Low Pass
Filter Order:2nd
Technology:RC
Number of Channels:3
Center / Cutoff Frequency:290MHz (Cutoff)
Attenuation Value:16.9dB @ 800MHz ~ 4GHz
Resistance - Channel (Ohms):47, 100
Current:-
Values:R = 47Ohms, 100Ohms, C = 16.5pF (Total)
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:5.5V
Mounting Type:Surface Mount
Package / Case:8-UFBGA, WLCSP
Size / Dimension:0.047" L x 0.047" W (1.20mm x 1.20mm)
Height:0.026" (0.65mm)
