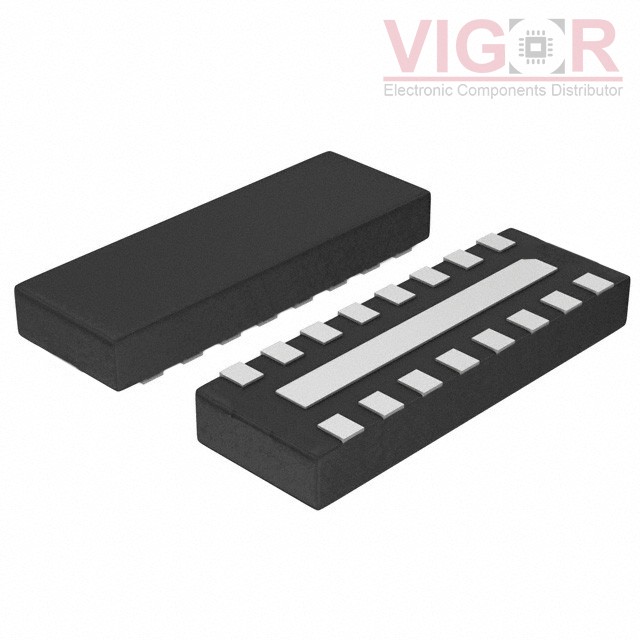

TPD8F003DQDR

Part No :: TPD8F003DQDR

Manufacturer: Texas Instruments

Description: FILTER RC(PI) 100 OHM/8.5PF SMD

Catalog: EMI/RFI Filters (LC, RC Networks)

DataSheet: TPD8F003DQDR PDF

Availability: 0 pieces

Current price of TPD8F003DQDR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TPD8F003DQDR Specifications

Type	Description
Series:	TPD
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	8
Center / Cutoff Frequency:	200MHz (Cutoff)
Attenuation Value:	25dB @ 1GHz
Resistance - Channel (Ohms):	100
Current:	-
Values:	R = 100Ohms, C = 8.5pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	16-WFDFN Exposed Pad
Size / Dimension:	0.130" L x 0.053" W (3.30mm x 1.35mm)
Height:	0.031" (0.79mm)

Please confirm the specifications of the products when ordering.
