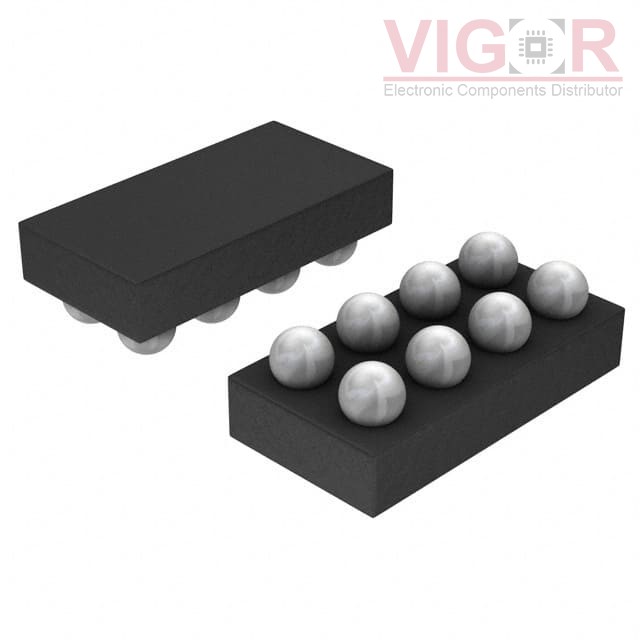

NUF2222FCT1G

Part No :: NUF2222FCT1G

Manufacturer: VIGOR

Description: DATA LINE FILTER

Catalog: EMI/RFI Filters (LC, RC Networks)

DataSheet: NUF2222FCT1G PDF

Availability: 206780 pieces

Current price of NUF2222FCT1G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NUF2222FCT1G Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	2
Center / Cutoff Frequency:	190MHz (Cutoff)
Attenuation Value:	-20dB @ 900MHz ~ 3GHz
Resistance - Channel (Ohms):	33
Current:	-
Values:	R = 33Ohms, C = 36pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	USB
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	8-WFBGA, FCBGA
Size / Dimension:	0.050" L x 0.078" W (1.27mm x 1.97mm)
Height:	0.028" (0.70mm)
