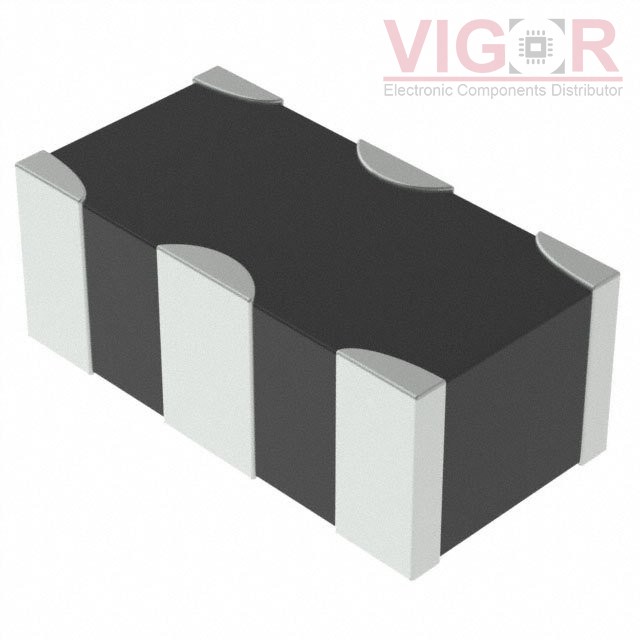

NFL18ST307H1A3D

Part No :: NFL18ST307H1A3D

Manufacturer: TOKO / Murata

Description: FILTER LC(T) 74NH/16PF SMD

Catalog: EMI/RFI Filters (LC, RC Networks)

DataSheet: NFL18ST307H1A3D PDF

Availability: 2543 pieces

Current price of NFL18ST307H1A3D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NFL18ST307H1A3D Specifications

Type	Description
Series:	EMIFIL®, NFL18
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Low Pass
Filter Order:	3rd
Technology:	LC (T-Type)
Number of Channels:	1
Center / Cutoff Frequency:	300MHz (Cutoff)
Attenuation Value:	6dB @ 0MHz ~ 300MHz
Resistance - Channel (Ohms):	-
Current:	100 mA
Values:	L = 74nH, C = 16pF
ESD Protection:	No
Operating Temperature:	-55°C ~ 125°C
Applications:	General Purpose
Voltage - Rated:	10V
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric), 3 PC Pad
Size / Dimension:	0.063" L x 0.032" W (1.60mm x 0.80mm)
Height:	0.035" (0.90mm)
