ACH3218-330-TD01

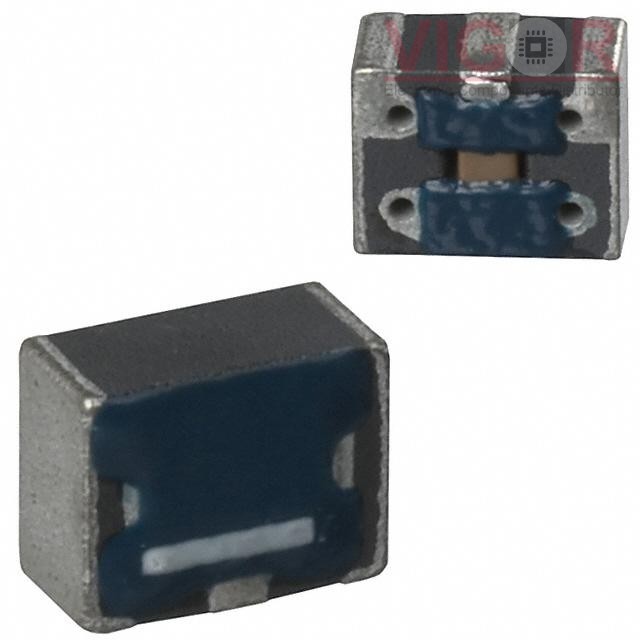

Image is for reference,
please contact us to get the real picture

Part No :: ACH3218-330-TD01

Manufacturer: TDK Corporation

Description: FILTER LC(T) SMD

Catalog: EMI/RFI Filters (LC, RC Networks)

Shipped from: HK warehouse

Expected Shipping Date: Oct 11 - Oct 15 2025

DataSheet: ACH3218-330-TD01 PDF

Availability: 0 pieces

Unit Price: ~~$0.24812~~

Current price of ACH3218-330-TD01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACH3218-330-TD01 Specifications

Type	Description
Series:	ACH
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	Low Pass
Filter Order:	3rd
Technology:	LC (T-Type)
Number of Channels:	1
Center / Cutoff Frequency:	-
Attenuation Value:	25dB @ 500MHz ~ 600MHz
Resistance - Channel (Ohms):	0.06
Current:	1.5 A
Values:	-
ESD Protection:	No
Operating Temperature:	-40°C ~ 125°C
Applications:	General Purpose
Voltage - Rated:	20V
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric), 3 PC Pad
Size / Dimension:	0.071" Dia x 0.126" L (1.80mm x 3.20mm)
Height:	0.108" (2.75mm)

Please confirm the specifications of the products when ordering.
