CM1683-02DE

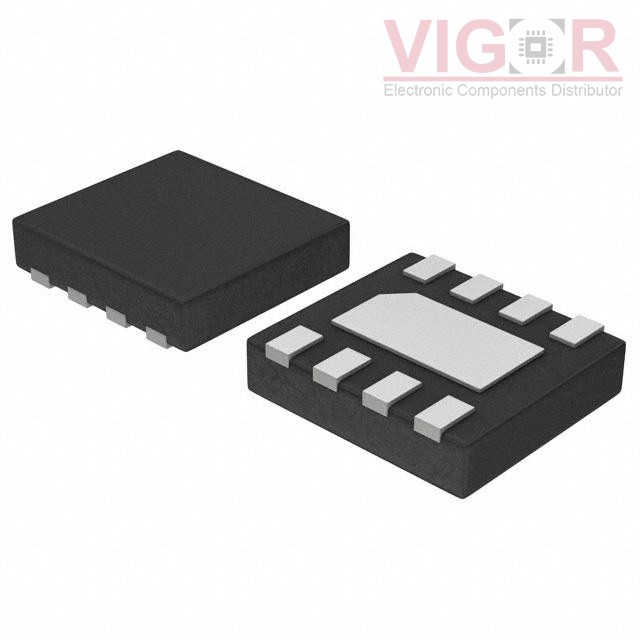

Product image
Product thumb
Part No :

CM1683-02DE

Manufacturer
VIGOR
VIGOR # :

4026966

Description
DATA LINE FILTER
Catalog
EMI/RFI Filters (LC, RC Networks)
DataSheet
CM1683-02DE PDF
Country of origin
-
Date code
-
ads
CM1683-02DE Specifications
Type Description
Series:Praetorian®
Package:Bulk
Part Status:Obsolete
Type:Low Pass
Filter Order:3rd
Technology:LC (Pi)
Number of Channels:2
Center / Cutoff Frequency:31MHz (Cutoff)
Attenuation Value:40dB @ 1GHz
Resistance - Channel (Ohms):0.75
Current:30 mA
Values:L = 3nH, C = 100pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:8-UDFN Exposed Pad
Size / Dimension:0.079" L x 0.079" W (2.00mm x 2.00mm)
Height:0.026" (0.65mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 89770
Shipped from
HK warehouse
Expected Shipping Date
Feb 09 - Feb 13 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.24 $0.24

Current price of CM1683-02DE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
