DRQ125-680-R

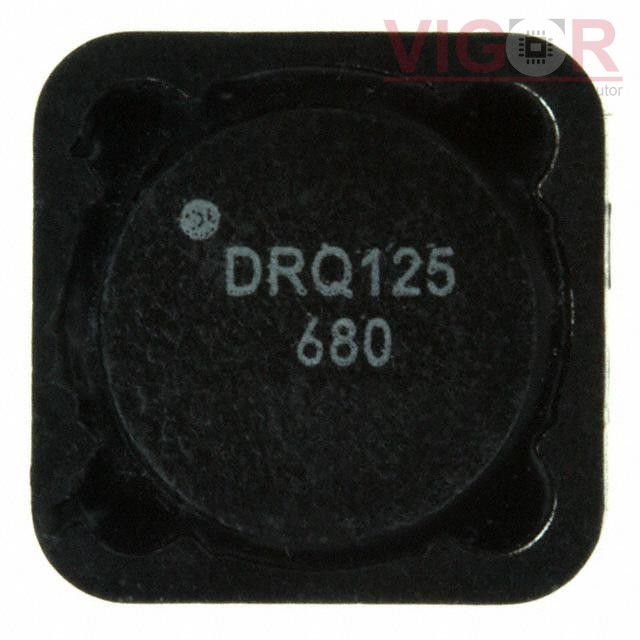

Image is for reference,
please contact us to get the real picture

Part No :: DRQ125-680-R

Manufacturer: PowerStor (Eaton)

Description: INDUCT ARRAY 2 COIL 67.91UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: DRQ125-680-R PDF

Availability: 0 pieces

Unit Price: ~~$0.99280~~

Current price of DRQ125-680-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DRQ125-680-R Specifications

Type	Description
Series:	DRQ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	67.91 µH
Inductance - Connected In Series:	271.6 µH
Tolerance:	±20%
Current Rating - Parallel:	2.22 A
Current Rating - Series:	1.11 A
Current Saturation - Parallel:	2.7 A
Current Saturation - Series:	1.35 A
DC Resistance (DCR) - Parallel:	101mOhm
DC Resistance (DCR) - Series:	440mOhm
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:	0.236" (6.00mm)
