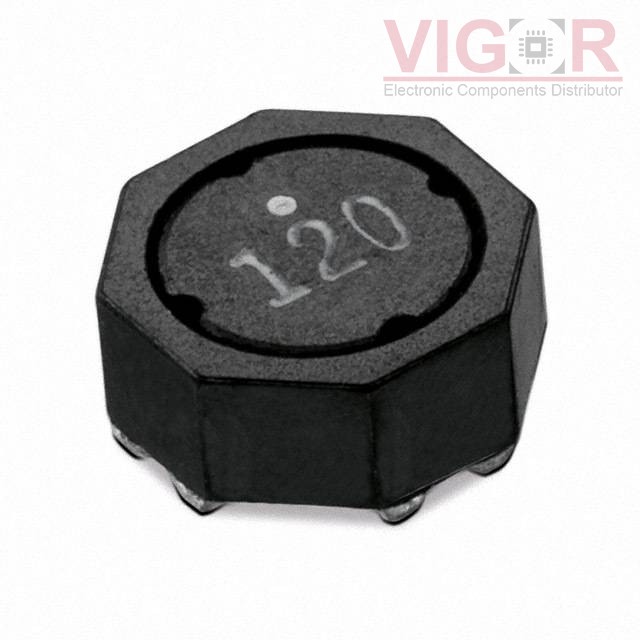

74489430220

Part No :: 74489430220

Manufacturer: Würth Elektronik Midcom

Description: INDUCT ARRAY 2 COIL 22UH SMD

Catalog: Arrays, Signal Transformers

DataSheet: 74489430220 PDF

Availability: 92 pieces

Unit Price: ~~$1.79000~~

Current price of 74489430220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

74489430220 Specifications

Type	Description
Series:	WE-TDC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	22 µH
Inductance - Connected In Series:	88 µH
Tolerance:	±20%
Current Rating - Parallel:	700 mA
Current Rating - Series:	350 mA
Current Saturation - Parallel:	1.1 A
Current Saturation - Series:	550 mA
DC Resistance (DCR) - Parallel:	480mOhm Max
DC Resistance (DCR) - Series:	-
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height:	0.083" (2.10mm)
