IHLP1212AEERR82M11

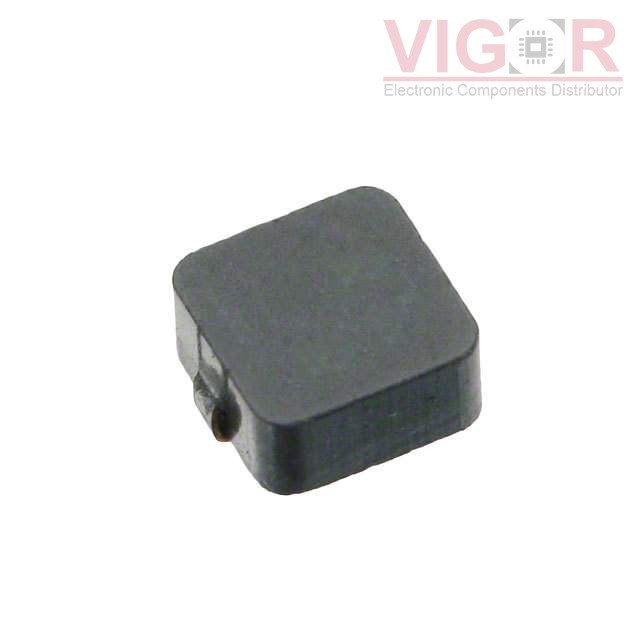

Image is for reference,
please contact us to get the real picture

Part No :: IHLP1212AEERR82M11

Manufacturer: Vishay / Dale

Description: FIXED IND 820NH 4.9A 26 MOHM SMD

Catalog: Fixed Inductors

DataSheet: IHLP1212AEERR82M11 PDF

Availability: 11468 pieces

Unit Price: ~~$1.26000~~

Current price of IHLP1212AEERR82M11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IHLP1212AEERR82M11 Specifications

Type	Description
Series:	IHLP-1212AE-11
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	-
Inductance:	820 nH
Tolerance:	±20%
Current Rating (Amps):	4.9 A
Current - Saturation (Isat):	5.5A
Shielding:	Shielded
DC Resistance (DCR):	26mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.142" L x 0.118" W (3.60mm x 3.00mm)
Height - Seated (Max):	0.059" (1.50mm)
