AMPLA7050Q-R56MT

AMPLA7050Q-R56MT

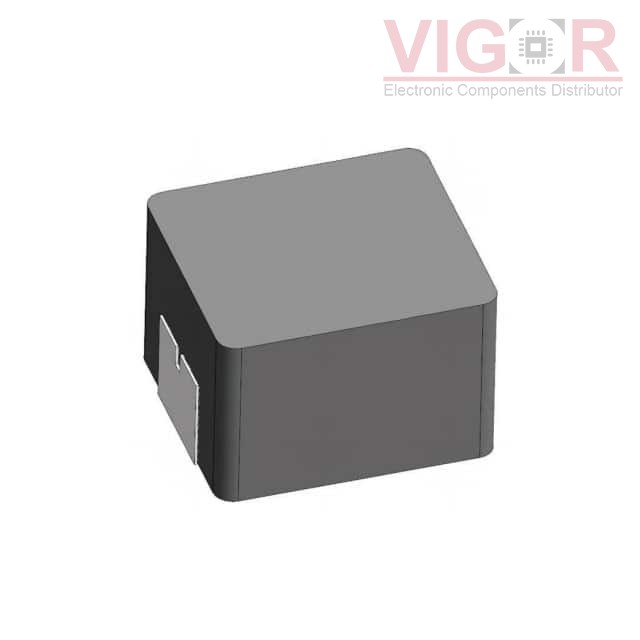

Image is for reference,
please contact us to get the real picture

Part No :

AMPLA7050Q-R56MT

Manufacturer
Abracon
Description
FIXED IND 560NH 20A 4.2 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Nov 12 - Nov 16 2025
DataSheet
AMPLA7050Q-R56MT PDF
Availability
0 pieces
Unit Price
$0.73604

Current price of AMPLA7050Q-R56MT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AMPLA7050Q-R56MT Specifications
Type Description
Series:AMPLA7050Q
Package:Tape & Reel (TR)
Part Status:Active
Type:Molded
Material - Core:Carbonyl Powder
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):20 A
Current - Saturation (Isat):27A
Shielding:Shielded
DC Resistance (DCR):4.2mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max):0.197" (5.00mm)
