LQW21HN2R2J00L

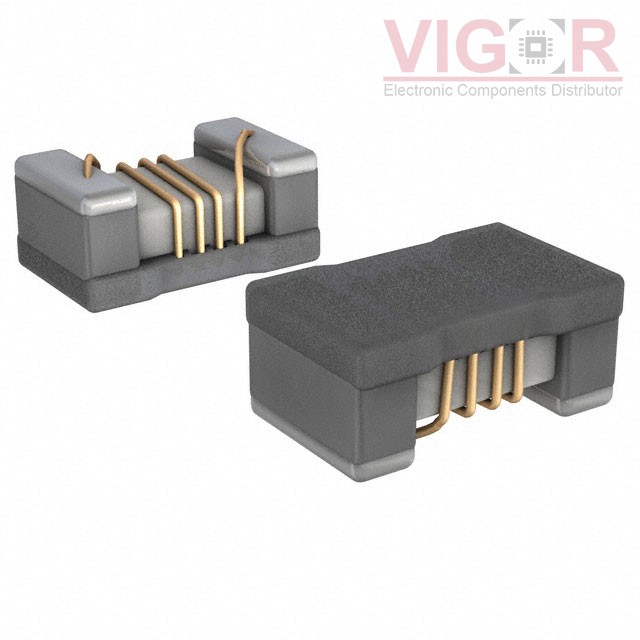

Image is for reference,
please contact us to get the real picture

Part No :: LQW21HN2R2J00L

Manufacturer: TOKO / Murata

Description: FIXED IND 2.2UH 75MA 6.5 OHM SMD

Catalog: Fixed Inductors

DataSheet: LQW21HN2R2J00L PDF

Availability: 4176 pieces

Unit Price: ~~$0.44000~~

Current price of LQW21HN2R2J00L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LQW21HN2R2J00L Specifications

Type	Description
Series:	LQW21
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±5%
Current Rating (Amps):	75 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	6.5Ohm Max
Q @ Freq:	30 @ 100MHz
Frequency - Self Resonant:	300MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	10 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max):	0.039" (1.00mm)
