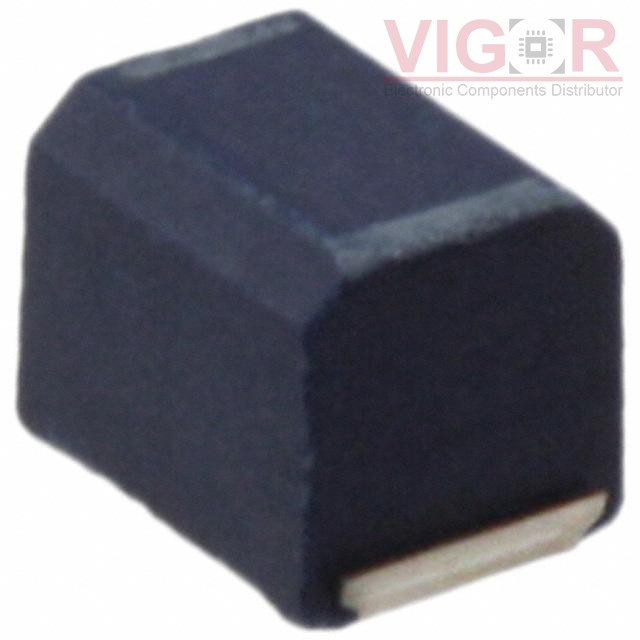

NL453232T-221J-PF

Part No :: NL453232T-221J-PF

Manufacturer: TDK Corporation

Description: FIXED IND 220UH 100MA 10 OHM SMD

Catalog: Fixed Inductors

DataSheet: NL453232T-221J-PF PDF

Availability: 721 pieces

Current price of NL453232T-221J-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NL453232T-221J-PF Specifications

Type	Description
Series:	NL
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Last Time Buy
Type:	Wirewound
Material - Core:	-
Inductance:	220 µH
Tolerance:	±5%
Current Rating (Amps):	100 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	10Ohm Max
Q @ Freq:	40 @ 796kHz
Frequency - Self Resonant:	4MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	796 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.134" (3.40mm)
