LQY33PN100M02L

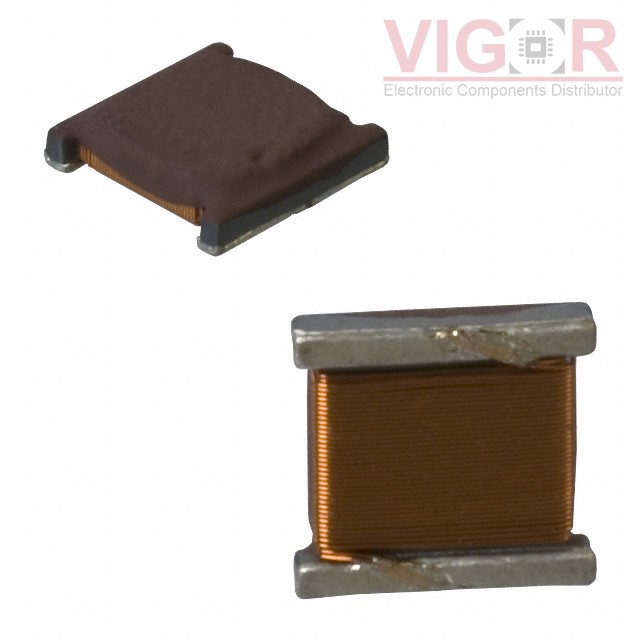

Image is for reference,
please contact us to get the real picture

Part No :: LQY33PN100M02L

Manufacturer: TOKO / Murata

Description: FIXED IND 10UH 420MA 1 OHM SMD

Catalog: Fixed Inductors

DataSheet: LQY33PN100M02L PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of LQY33PN100M02L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LQY33PN100M02L Specifications

Type	Description
Series:	LQY33
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	10 µH
Tolerance:	±20%
Current Rating (Amps):	420 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1Ohm
Q @ Freq:	-
Frequency - Self Resonant:	120MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1212 (3030 Metric)
Supplier Device Package:	1212
Size / Dimension:	0.126" L x 0.126" W (3.20mm x 3.20mm)
Height - Seated (Max):	0.037" (0.95mm)
