SC3316F-680

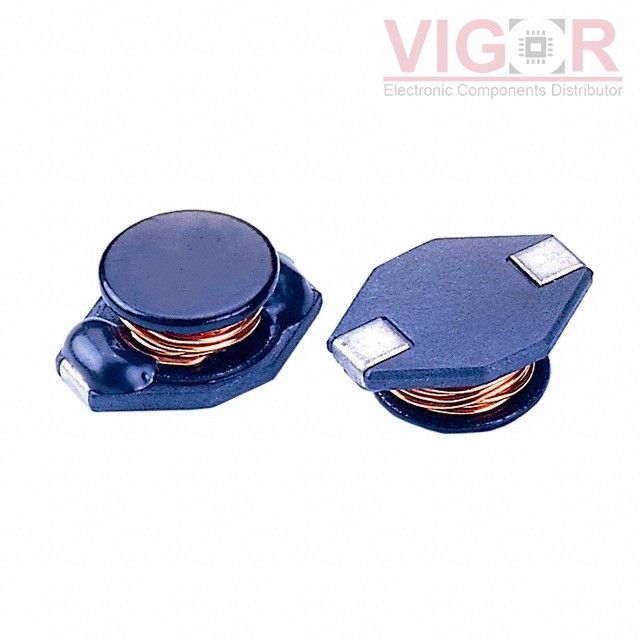

Image is for reference,
please contact us to get the real picture

Part No :: SC3316F-680

Manufacturer: Signal Transformer

Description: FIXED IND 68UH 1.5A 220 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SC3316F-680 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SC3316F-680 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SC3316F-680 Specifications

Type	Description
Series:	SC3316F
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	68 µH
Tolerance:	±20%
Current Rating (Amps):	1.5 A
Current - Saturation (Isat):	1.4A
Shielding:	Unshielded
DC Resistance (DCR):	220mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.530" L x 0.390" W (13.45mm x 9.90mm)
Height - Seated (Max):	0.205" (5.21mm)
