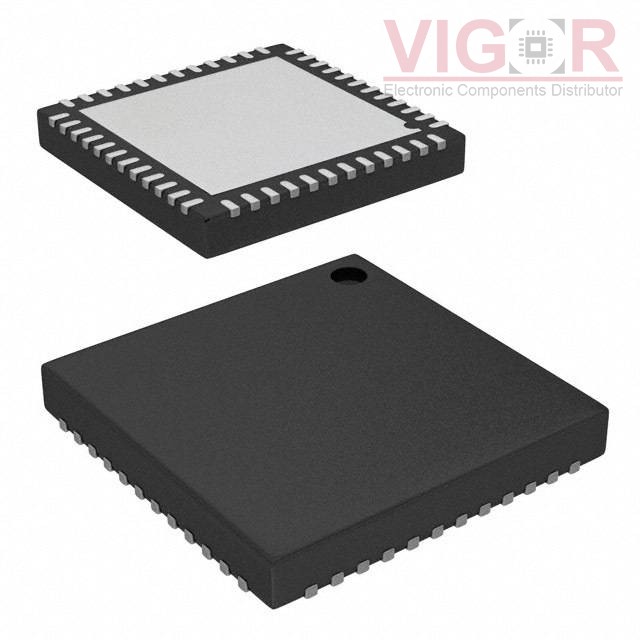

CY8C28643-24LTXIT

Part No :: CY8C28643-24LTXIT

Manufacturer: Cypress Semiconductor

VIGOR # :: 3653654

Description: IC MCU 8BIT 16KB FLASH 48QFN

Catalog: Embedded - Microcontrollers

DataSheet: CY8C28643-24LTXIT PDF

Country of origin: -

Date code: -

CY8C28643-24LTXIT Specifications

Type	Description
Series:	PSOC®1 CY8C28xxx
Package:	Tape & Reel (TR)
Part Status:	Active
Core Processor:	M8C
Core Size:	8-Bit
Speed:	24MHz
Connectivity:	I²C, IrDA, SPI, UART/USART
Peripherals:	LVD, POR, PWM, WDT
Number of I/O:	44
Program Memory Size:	16KB (16K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	1K x 8
Voltage - Supply (Vcc/Vdd):	3V ~ 5.25V
Data Converters:	A/D 4x14b; D/A 4x9b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	48-VFQFN Exposed Pad
Supplier Device Package:	48-QFN (7x7)

Alternative Products

Part Number	Manufacturer & Description	Compare
CY8C27643-24LTXI Match 100%	Cypress Semiconductor IC MCU 8BIT 16KB FLASH 48QFN	CY8C28643-24LTXIT vs CY8C27643-24LTXI
CY8C28645-24LTXIT Match 100%	Cypress Semiconductor IC MCU 8BIT 16KB FLASH 48QFN	CY8C28643-24LTXIT vs CY8C28645-24LTXIT
CY8C28643-24LTXI Match 100%	Cypress Semiconductor IC MCU 8BIT 16KB FLASH 48QFN	CY8C28643-24LTXIT vs CY8C28643-24LTXI
CY8C27643-24LTXIKG Match 100%	VIGOR IC MCU 8BIT 16KB FLASH 48QFN	CY8C28643-24LTXIT vs CY8C27643-24LTXIKG
CY8C28645-24LTXI Match 100%	Cypress Semiconductor IC MCU 8BIT 16KB FLASH 48QFN	CY8C28643-24LTXIT vs CY8C28645-24LTXI
CY8C27643-24LFXI Match 100%	VIGOR IC MCU 8BIT 16KB FLASH 48QFN	CY8C28643-24LTXIT vs CY8C27643-24LFXI

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 6250

Shipped from

HK warehouse

Expected Shipping Date

Jul 23 - Jul 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.1150~~	~~$5.12~~
2000	~~$5.1150~~	~~$10 230.00~~

Current price of CY8C28643-24LTXIT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
