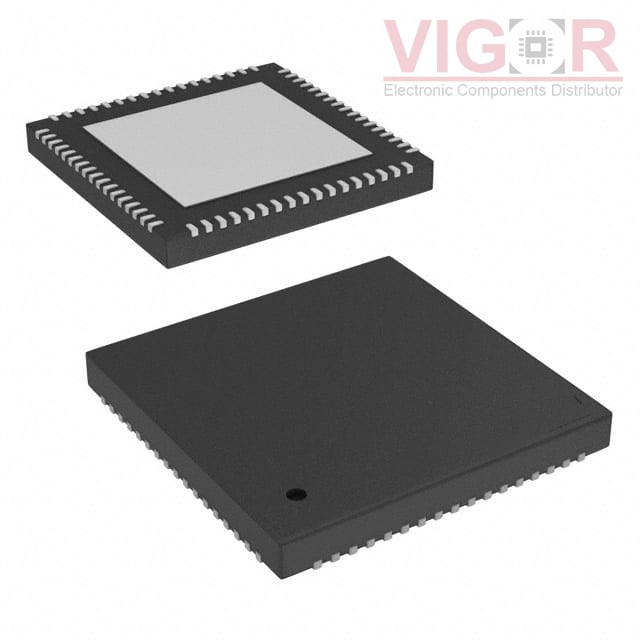

CY8C24094-24LTXI

Part No :: CY8C24094-24LTXI

Manufacturer: VIGOR

VIGOR # :: 3655131

Description: IC MCU 8BIT 16KB FLASH 68QFN

Catalog: Embedded - Microcontrollers

DataSheet: CY8C24094-24LTXI PDF

Country of origin: -

Date code: -

CY8C24094-24LTXI Specifications

Type	Description
Series:	PSOC®1 CY8C24xxx
Package:	Tray
Part Status:	Obsolete
Core Processor:	M8C
Core Size:	8-Bit
Speed:	24MHz
Connectivity:	I²C, SPI, UART/USART, USB
Peripherals:	POR, PWM, WDT
Number of I/O:	56
Program Memory Size:	16KB (16K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	1K x 8
Voltage - Supply (Vcc/Vdd):	3V ~ 5.25V
Data Converters:	A/D 48x14b; D/A 2x9b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	68-VFQFN Exposed Pad
Supplier Device Package:	68-QFN (8x8)

Alternative Products

Part Number	Manufacturer & Description	Compare
CY8C24994-24LTXIT Match 100%	Cypress Semiconductor IC MCU 8BIT 16KB FLASH 68QFN	CY8C24094-24LTXI vs CY8C24994-24LTXIT
CY8C24994-24LTXI Match 100%	Cypress Semiconductor IC MCU 8BIT 16KB FLASH 68QFN	CY8C24094-24LTXI vs CY8C24994-24LTXI
CY8C24094-24LTXIT Match 100%	Cypress Semiconductor IC MCU 8BIT 16KB FLASH 68QFN	CY8C24094-24LTXI vs CY8C24094-24LTXIT
CY8C24994-24LFXI Match 100%	Cypress Semiconductor IC MCU 8BIT 16KB FLASH 68QFN	CY8C24094-24LTXI vs CY8C24994-24LFXI
CY8C24994-24LFXIT Match 100%	Cypress Semiconductor IC MCU 8BIT 16KB FLASH 68QFN	CY8C24094-24LTXI vs CY8C24994-24LFXIT

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 4875

Shipped from

HK warehouse

Expected Shipping Date

Jul 23 - Jul 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$13.3300~~	~~$13.33~~

Current price of CY8C24094-24LTXI is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
