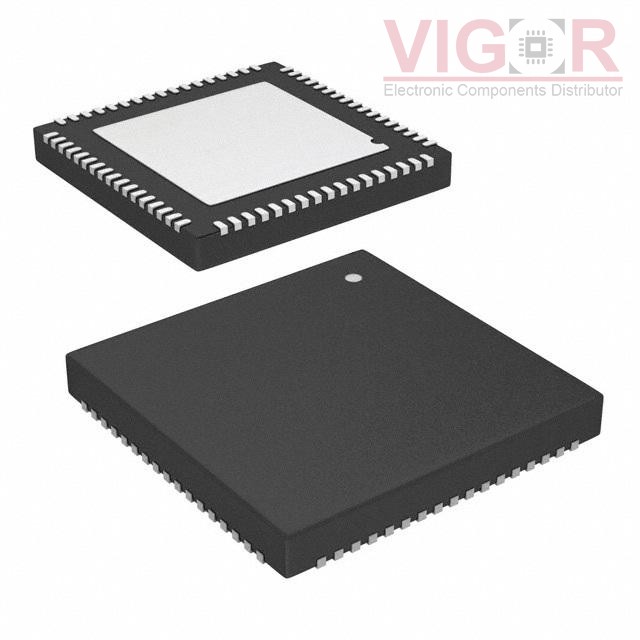

CY8C24094-24LTXIT

Part No :: CY8C24094-24LTXIT

Manufacturer: Cypress Semiconductor

VIGOR # :: 4790201

Description: IC MCU 8BIT 16KB FLASH 68QFN

Catalog: Embedded - Microcontrollers

DataSheet: CY8C24094-24LTXIT PDF

Country of origin: -

Date code: -

CY8C24094-24LTXIT Specifications

Type	Description
Series:	PSOC®1 CY8C24xxx
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Core Processor:	M8C
Core Size:	8-Bit
Speed:	24MHz
Connectivity:	I²C, SPI, UART/USART, USB
Peripherals:	POR, PWM, WDT
Number of I/O:	56
Program Memory Size:	16KB (16K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	1K x 8
Voltage - Supply (Vcc/Vdd):	3V ~ 5.25V
Data Converters:	A/D 48x14b; D/A 2x9b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	68-VFQFN Exposed Pad
Supplier Device Package:	68-QFN (8x8)

Alternative Products

Part Number	Manufacturer & Description	Compare
CY8C24994-24LTXIT Match 100%	Cypress Semiconductor IC MCU 8BIT 16KB FLASH 68QFN	CY8C24094-24LTXIT vs CY8C24994-24LTXIT
CY8C24994-24LTXI Match 100%	Cypress Semiconductor IC MCU 8BIT 16KB FLASH 68QFN	CY8C24094-24LTXIT vs CY8C24994-24LTXI
CY8C24094-24LTXI Match 100%	VIGOR IC MCU 8BIT 16KB FLASH 68QFN	CY8C24094-24LTXIT vs CY8C24094-24LTXI
CY8C24994-24LFXI Match 100%	Cypress Semiconductor IC MCU 8BIT 16KB FLASH 68QFN	CY8C24094-24LTXIT vs CY8C24994-24LFXI
CY8C24994-24LFXIT Match 100%	Cypress Semiconductor IC MCU 8BIT 16KB FLASH 68QFN	CY8C24094-24LTXIT vs CY8C24994-24LFXIT
