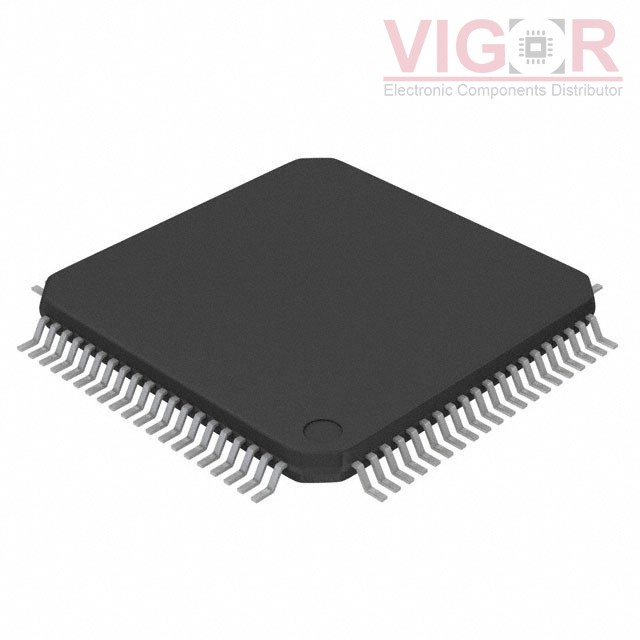

UPD78F1156AGC-GAD-AX

Part No :: UPD78F1156AGC-GAD-AX

Manufacturer: VIGOR

VIGOR # :: 3658241

Description: MICROCONTROLLER, 16 BIT, FLASH,

Catalog: Embedded - Microcontrollers

DataSheet: UPD78F1156AGC-GAD-AX PDF

Country of origin: Confirming

Date code: TBC

UPD78F1156AGC-GAD-AX Specifications

Type	Description
Series:	78K0R/Kx3
Package:	Bulk
Part Status:	Active
Core Processor:	78K/0R
Core Size:	16-Bit
Speed:	20MHz
Connectivity:	3-Wire SIO, I²C, LINbus, UART/USART
Peripherals:	DMA, LVD, POR, PWM, WDT
Number of I/O:	65
Program Memory Size:	256KB (256K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	12K x 8
Voltage - Supply (Vcc/Vdd):	1.8V ~ 5.5V
Data Converters:	A/D 8x10b; D/A 2x8b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	80-LQFP
Supplier Device Package:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
UPD78F1154AGK-GAK-AX Match 58%	Renesas Electronics America IC MCU 16BIT 128KB FLASH 80LQFP	UPD78F1156AGC-GAD-AX vs UPD78F1154AGK-GAK-AX
UPD78F1154AGC-GAD-AX Match 58%	Renesas Electronics America IC MCU 16BIT 128KB FLASH 80LQFP	UPD78F1156AGC-GAD-AX vs UPD78F1154AGC-GAD-AX
UPD78F1155AGK-GAK-AX Match 82%	Renesas Electronics America IC MCU 16BIT 192KB FLASH 80LQFP	UPD78F1156AGC-GAD-AX vs UPD78F1155AGK-GAK-AX
UPD78F1156AGK-GAK-AX Match 100%	Renesas Electronics America IC MCU 16BIT 256KB FLASH 80LQFP	UPD78F1156AGC-GAD-AX vs UPD78F1156AGK-GAK-AX
UPD78F1155AGC-GAD-AX Match 82%	Renesas Electronics America IC MCU 16BIT 192KB FLASH 80LQFP	UPD78F1156AGC-GAD-AX vs UPD78F1155AGC-GAD-AX
