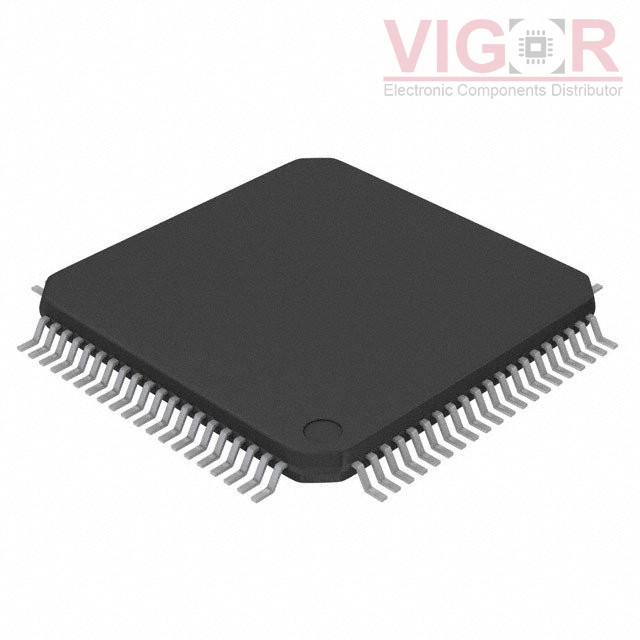

UPD78F1156AGK-GAK-AX

Part No :: UPD78F1156AGK-GAK-AX

Manufacturer: Renesas Electronics America

VIGOR # :: 4798656

Description: IC MCU 16BIT 256KB FLASH 80LQFP

Catalog: Embedded - Microcontrollers

DataSheet: UPD78F1156AGK-GAK-AX PDF

Country of origin: -

Date code: -

UPD78F1156AGK-GAK-AX Specifications

Type	Description
Series:	78K0R/Kx3
Package:	Tray
Part Status:	Active
Core Processor:	78K/0R
Core Size:	16-Bit
Speed:	20MHz
Connectivity:	3-Wire SIO, I²C, LINbus, UART/USART
Peripherals:	DMA, LVD, POR, PWM, WDT
Number of I/O:	65
Program Memory Size:	256KB (256K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	12K x 8
Voltage - Supply (Vcc/Vdd):	1.8V ~ 5.5V
Data Converters:	A/D 8x10b; D/A 2x8b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	80-LQFP
Supplier Device Package:	-
