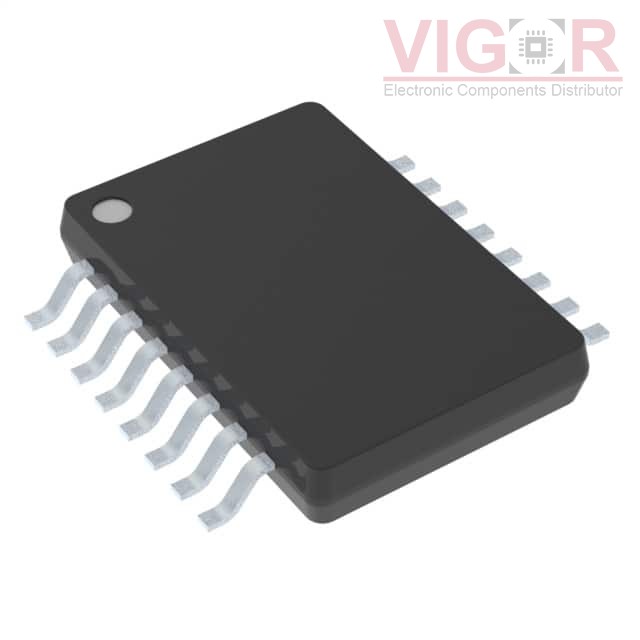

ADG5434BRUZ

Part No :: ADG5434BRUZ

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3926944

Description: IC SWITCH QUAD SPST 20TSSOP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG5434BRUZ PDF

Country of origin: -

Date code: -

ADG5434BRUZ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	4
On-State Resistance (Max):	14Ohm
Channel-to-Channel Matching (ΔRon):	300mOhm
Voltage - Supply, Single (V+):	9V ~ 40V
Voltage - Supply, Dual (V±):	±9V ~ 22V
Switch Time (Ton, Toff) (Max):	186ns, 104ns
-3db Bandwidth:	140MHz
Charge Injection:	176pC
Channel Capacitance (CS(off), CD(off)):	15pF, 23pF
Current - Leakage (IS(off)) (Max):	250pA
Crosstalk:	-60dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	20-TSSOP

Alternative Products

Part Number	Manufacturer & Description	Compare
CD74HC4351M96 Match 95%	VIGOR CD74HC4351 HIGH SPEED CMOS LOGIC	ADG5434BRUZ vs CD74HC4351M96
ADG5433WBRUZ Match 100%	VIGOR SPDT, 3 FUNC, BICMOS, PDSO16	ADG5434BRUZ vs ADG5433WBRUZ
ADG5433BRUZ Match 100%	Linear Technology (Analog Devices, Inc.) IC SWITCH THREE SPST 16TSSOP	ADG5434BRUZ vs ADG5433BRUZ
ADG5434BCPZ-REEL7 Match 100%	Linear Technology (Analog Devices, Inc.) IC SW ANLG QUAD SPDT 20LFCSP	ADG5434BRUZ vs ADG5434BCPZ-REEL7
ADG5433BRUZ-REEL7 Match 100%	Linear Technology (Analog Devices, Inc.) IC SWITCH THREE SPDT 16TSSOP	ADG5434BRUZ vs ADG5433BRUZ-REEL7
ADG5434BRUZ-REEL7 Match 100%	Linear Technology (Analog Devices, Inc.) IC SWITCH QUAD SPDT 20TSSOP	ADG5434BRUZ vs ADG5434BRUZ-REEL7
