ADG509AKPZ-REEL

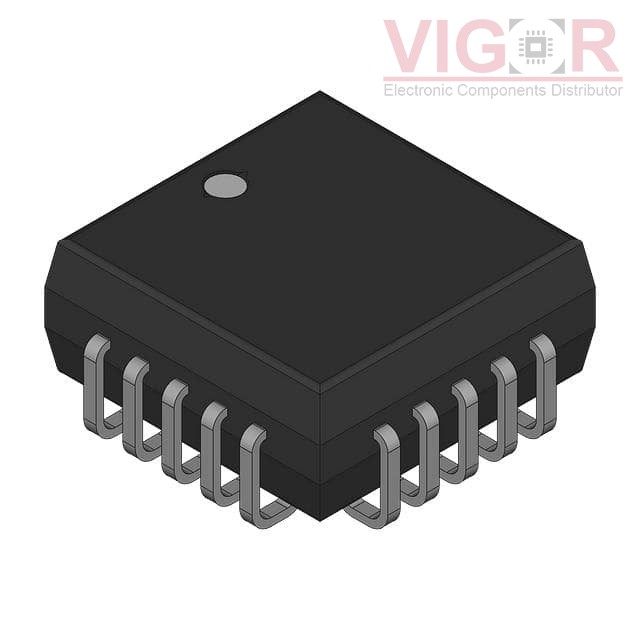

Image is for reference,
please contact us to get the real picture

Part No :: ADG509AKPZ-REEL

Manufacturer: VIGOR

Description: DIFFERENTIAL MULTIPLEXER, 1 FUNC

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

Shipped from: HK warehouse

Expected Shipping Date: Oct 16 - Oct 20 2025

DataSheet: ADG509AKPZ-REEL PDF

Availability: 6762 pieces

Unit Price: ~~$3.72000~~

Current price of ADG509AKPZ-REEL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADG509AKPZ-REEL Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	450Ohm
Channel-to-Channel Matching (ΔRon):	22.5Ohm
Voltage - Supply, Single (V+):	10.8V ~ 16.5V
Voltage - Supply, Dual (V±):	±10.8V ~ 16.5V
Switch Time (Ton, Toff) (Max):	300ns, 300ns
-3db Bandwidth:	-
Charge Injection:	4pC
Channel Capacitance (CS(off), CD(off)):	5pF, 11pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-LCC (J-Lead)
Supplier Device Package:	20-PLCC (9x9)
