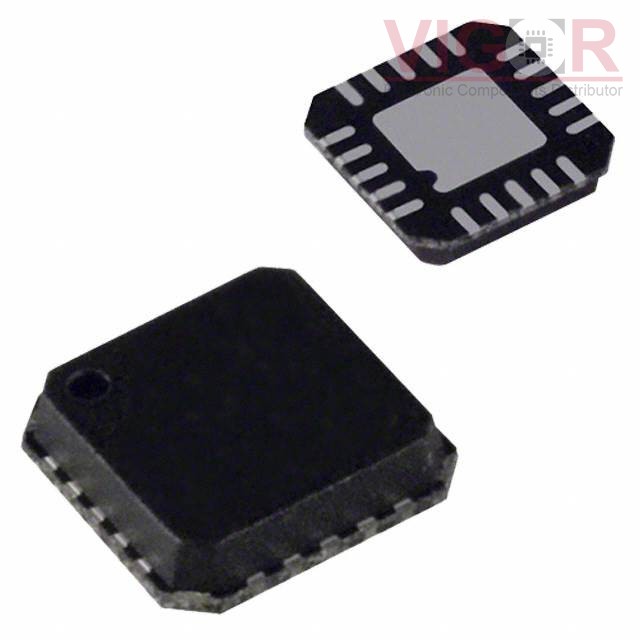

ADG786BCPZ-REEL7

Part No :: ADG786BCPZ-REEL7

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3928716

Description: IC SWITCH TRIPLE SPDT 20LFCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG786BCPZ-REEL7 PDF

Country of origin: -

Date code: -

ADG786BCPZ-REEL7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	3
On-State Resistance (Max):	4.5Ohm
Channel-to-Channel Matching (ΔRon):	-
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	±2.5V
Switch Time (Ton, Toff) (Max):	21ns, 10ns (Typ)
-3db Bandwidth:	160MHz
Charge Injection:	5pC
Channel Capacitance (CS(off), CD(off)):	11pF
Current - Leakage (IS(off)) (Max):	100pA
Crosstalk:	-80dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-WFQFN Exposed Pad, CSP
Supplier Device Package:	20-LFCSP-WQ (4x4)
