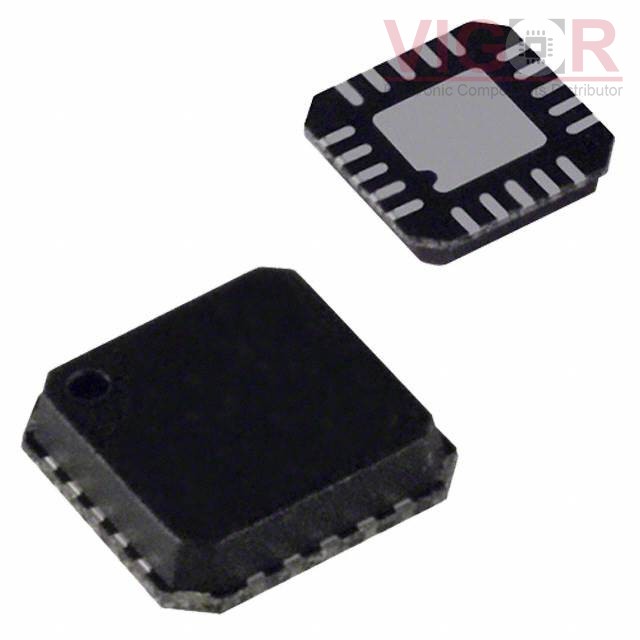

ADG786BCPZ

Part No :: ADG786BCPZ

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3929521

Description: IC SWITCH TRIPLE SPDT 20LFCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG786BCPZ PDF

Country of origin: -

Date code: -

ADG786BCPZ Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	3
On-State Resistance (Max):	4.5Ohm
Channel-to-Channel Matching (ΔRon):	-
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	±2.5V
Switch Time (Ton, Toff) (Max):	21ns, 10ns (Typ)
-3db Bandwidth:	160MHz
Charge Injection:	5pC
Channel Capacitance (CS(off), CD(off)):	11pF
Current - Leakage (IS(off)) (Max):	100pA
Crosstalk:	-80dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-WFQFN Exposed Pad, CSP
Supplier Device Package:	20-LFCSP-WQ (4x4)

Alternative Products

Part Number	Manufacturer & Description	Compare
NLV74HC4316ADR2G Match 100%	VIGOR SPST, 4 FUNC, CMOS, PDSO16	ADG786BCPZ vs NLV74HC4316ADR2G
ADG786BCPZ-REEL7 Match 100%	Linear Technology (Analog Devices, Inc.) IC SWITCH TRIPLE SPDT 20LFCSP	ADG786BCPZ vs ADG786BCPZ-REEL7
NLV74VHC4066DR2G Match 95%	Sanyo Semiconductor/ON Semiconductor IC MUX/DEMUX QUAD 1X1 14SOIC	ADG786BCPZ vs NLV74VHC4066DR2G
ADG788BCPZ-REEL7 Match 100%	Linear Technology (Analog Devices, Inc.) IC SWITCH QUAD SPDT 20LFCSP	ADG786BCPZ vs ADG788BCPZ-REEL7
MC74VHC4066DTR2G Match 95%	Sanyo Semiconductor/ON Semiconductor IC MUX/DEMUX QUAD 1X1 14TSSOP	ADG786BCPZ vs MC74VHC4066DTR2G
ADG786WBCPZ-REEL7 Match 100%	Linear Technology (Analog Devices, Inc.) IC SWITCH TRIPLE SPDT 20LFCSP	ADG786BCPZ vs ADG786WBCPZ-REEL7
