PCA9535DB

Part No :: PCA9535DB

Manufacturer: Texas Instruments

VIGOR # :: 3933620

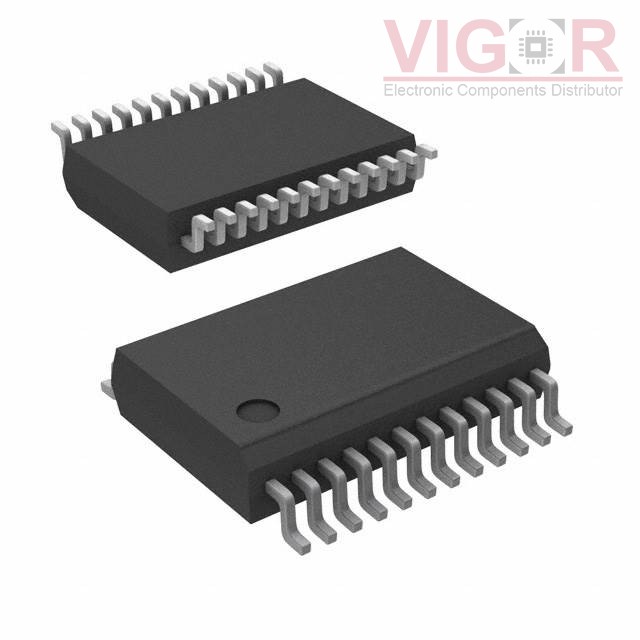

Description: IC I/O EXPANDER I2C 16B 24SSOP

Catalog: Interface - I/O Expanders

DataSheet: PCA9535DB PDF

Country of origin: -

Date code: -

PCA9535DB Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of I/O:	16
Interface:	I²C, SMBus
Interrupt Output:	Yes
Features:	POR
Output Type:	Push-Pull
Current - Output Source/Sink:	10mA, 25mA
Clock Frequency:	400 kHz
Voltage - Supply:	2.3V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	24-SSOP (0.209", 5.30mm Width)
Supplier Device Package:	24-SSOP

Alternative Products

Part Number	Manufacturer & Description	Compare
PCA9555DB,118 Match 100%	NXP Semiconductors IC I/O EXPANDER I2C 16B 24SSOP	PCA9535DB vs PCA9555DB,118
TCA9535DBR Match 100%	Texas Instruments IC I/O EXPANDER 16B 24SSOP	PCA9535DB vs TCA9535DBR
PCF8575CDBE4 Match 100%	VIGOR PCF8575C REMOTE 16-BIT I2C AND S	PCA9535DB vs PCF8575CDBE4
TCA9555DBR Match 100%	Texas Instruments IC I/O EXPANDER 16B 24SSOP	PCA9535DB vs TCA9555DBR
PCA9539DBR Match 100%	Texas Instruments IC I/O EXPANDER I2C 16B 24SSOP	PCA9535DB vs PCA9539DBR
PCA9535DBR Match 100%	Texas Instruments IC I/O EXPANDER I2C 16B 24SSOP	PCA9535DB vs PCA9535DBR
