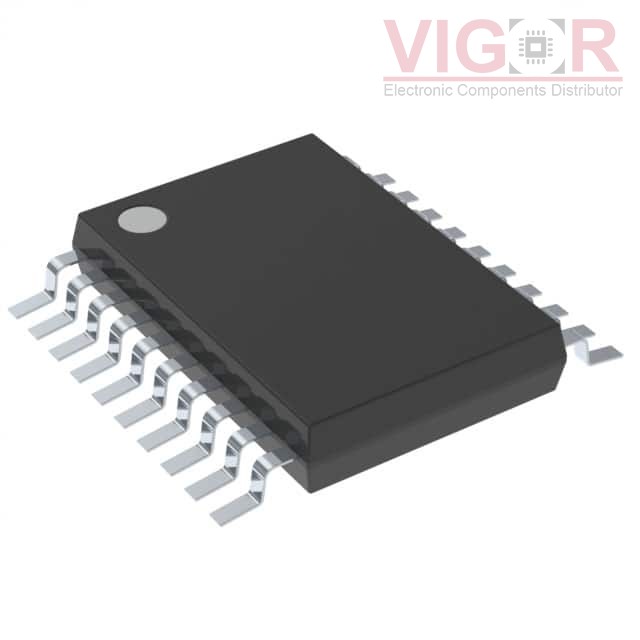

SN74LS684NSR

Part No :: SN74LS684NSR

Manufacturer: Texas Instruments

VIGOR # :: 3961702

Description: IC COMPARATOR MAGNITUDE 20SO

Catalog: Logic - Comparators

DataSheet: SN74LS684NSR PDF

Country of origin: -

Date code: -

SN74LS684NSR Specifications

Type	Description
Series:	74LS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Magnitude Comparator
Number of Bits:	8
Output:	Active Low
Output Function:	A=B, A>B
Voltage - Supply:	4.85V ~ 5.25V
Current - Output High, Low:	400µA, 24mA
Max Propagation Delay @ V, Max CL:	30ns @ 5V, 45pF
Current - Quiescent (Iq):	-
Operating Temperature:	0°C ~ 70°C
Package / Case:	20-SOIC (0.209", 5.30mm Width)
Supplier Device Package:	20-SO
Mounting Type:	Surface Mount
