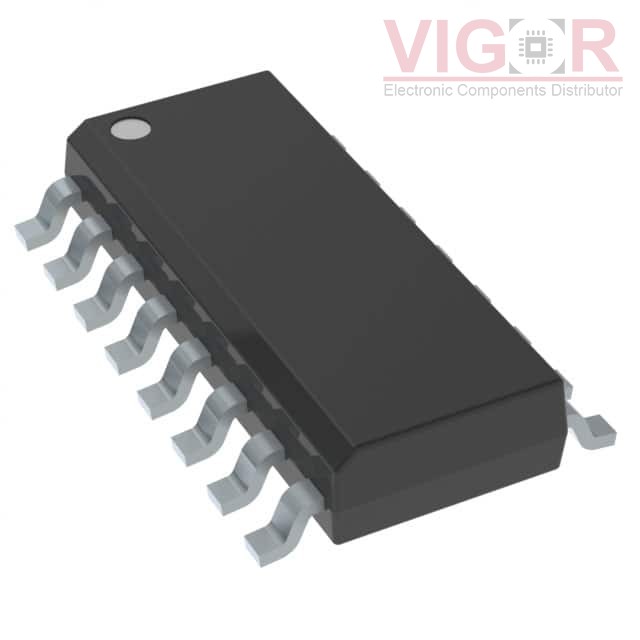

SN74HC109NSR

Product image
Product thumb
Part No :

SN74HC109NSR

Manufacturer
VIGOR
VIGOR # :

3823753

Description
SN74HC109 DUAL J-K POSITIVE-EDGE
Catalog
Logic - Flip Flops
DataSheet
SN74HC109NSR PDF
Country of origin
-
Date code
-
ads
SN74HC109NSR Specifications
Type Description
Series:74HC
Package:Bulk
Part Status:Active
Function:Set(Preset) and Reset
Type:JK Type
Output Type:Complimentary
Number of Elements:2
Number of Bits per Element:1
Clock Frequency:60 MHz
Max Propagation Delay @ V, Max CL:30ns @ 6V, 50pF
Trigger Type:Positive Edge
Current - Output High, Low:5.2mA, 5.2mA
Voltage - Supply:2V ~ 6V
Current - Quiescent (Iq):4 µA
Input Capacitance:3 pF
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:16-SO
Package / Case:16-SOIC (0.209", 5.30mm Width)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 5600
Shipped from
HK warehouse
Expected Shipping Date
Jan 18 - Jan 22 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.17 $0.17
2000 $0.17 $340.00
6000 $0.16 $954.18
10000 $0.15 $1 480.60

Current price of SN74HC109NSR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
