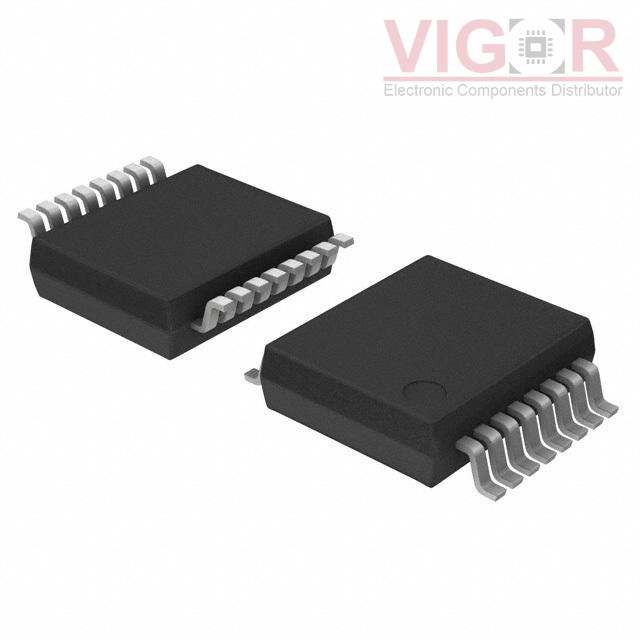

74HC109DB,118

Part No :: 74HC109DB,118

Manufacturer: Nexperia

VIGOR # :: 4886488

Description: IC FF JK TYPE DUAL 1BIT 16SSOP

Catalog: Logic - Flip Flops

DataSheet: 74HC109DB,118 PDF

Country of origin: -

Date code: -

74HC109DB,118 Specifications

Type	Description
Series:	74HC
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Function:	Set(Preset) and Reset
Type:	JK Type
Output Type:	Complimentary
Number of Elements:	2
Number of Bits per Element:	1
Clock Frequency:	81 MHz
Max Propagation Delay @ V, Max CL:	30ns @ 6V, 50pF
Trigger Type:	Positive Edge
Current - Output High, Low:	5.2mA, 5.2mA
Voltage - Supply:	2V ~ 6V
Current - Quiescent (Iq):	4 µA
Input Capacitance:	3.5 pF
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	16-SSOP
Package / Case:	16-SSOP (0.209", 5.30mm Width)

Alternative Products

Part Number	Manufacturer & Description	Compare
74HC112DB,112 Match 94%	VIGOR 74HC112 - DUAL JK FLIP-FLOP WITH	74HC109DB,118 vs 74HC112DB,112
74HC109DB,112 Match 100%	VIGOR J-KBAR FLIP-FLOP, HC/UH SERIES,	74HC109DB,118 vs 74HC109DB,112
74HC112DB,118 Match 94%	Nexperia IC FF JK TYPE DUAL 1BIT 16SSOP	74HC109DB,118 vs 74HC112DB,118
