74LVC2G38DC,125

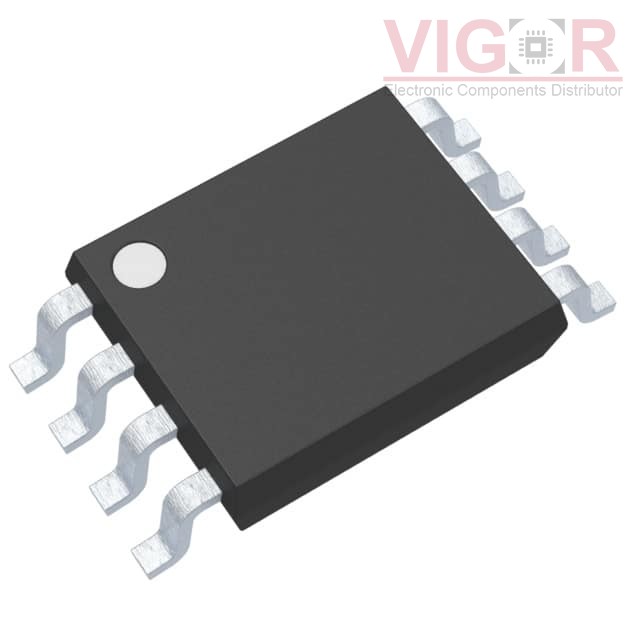

Image is for reference,
please contact us to get the real picture

Part No :: 74LVC2G38DC,125

Manufacturer: Nexperia

Description: IC GATE NAND OD 2CH 2-INP 8VSSOP

Catalog: Logic - Gates and Inverters

DataSheet: 74LVC2G38DC,125 PDF

Availability: 49 pieces

Unit Price: ~~$0.48000~~

Current price of 74LVC2G38DC,125 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

74LVC2G38DC,125 Specifications

Type	Description
Series:	74LVC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Logic Type:	NAND Gate
Number of Circuits:	2
Number of Inputs:	2
Features:	Open Drain
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Max):	4 µA
Current - Output High, Low:	-, 32mA
Logic Level - Low:	0.7V ~ 0.8V
Logic Level - High:	1.7V ~ 2V
Max Propagation Delay @ V, Max CL:	3.3ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	8-VSSOP
Package / Case:	8-VFSOP (0.091", 2.30mm Width)

Please confirm the specifications of the products when ordering.
