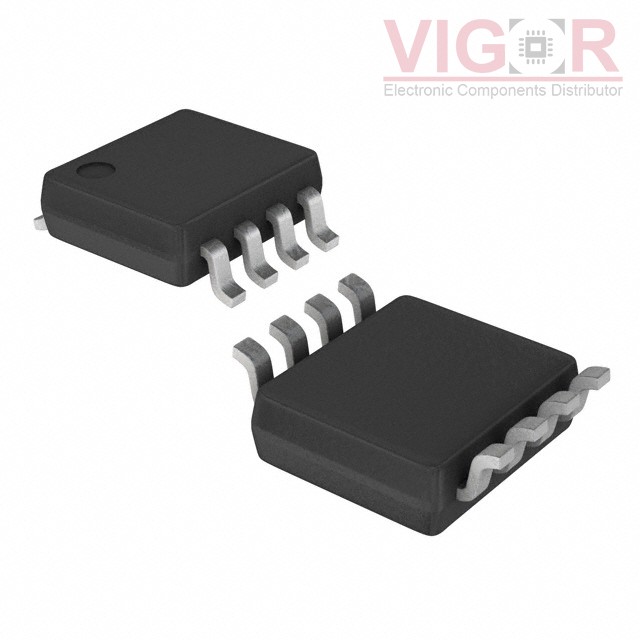

UCC3809P-1

Part No :: UCC3809P-1

Manufacturer: VIGOR

VIGOR # :: 3931073

Description: UCC3809-1 ECONOMY PRIMARY SIDE C

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: UCC3809P-1 PDF

Country of origin: -

Date code: -

UCC3809P-1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	No
Voltage - Breakdown:	-
Topology:	Boost, Buck, Flyback, Forward
Voltage - Start Up:	15 V
Voltage - Supply (Vcc/Vdd):	8V ~ 19V
Duty Cycle:	70%
Frequency - Switching:	1MHz
Power (Watts):	-
Fault Protection:	-
Control Features:	Frequency Control, Soft Start
Operating Temperature:	-55°C ~ 150°C (TJ)
Package / Case:	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:	8-VSSOP
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
UCC3809PTR-1 Match 100%	VIGOR UCC3809-1 ECONOMY PRIMARY SIDE C	UCC3809P-1 vs UCC3809PTR-1
UCC3809PTR-2G4 Match 100%	Texas Instruments IC REG CTRLR PWM CM 8VSSOP	UCC3809P-1 vs UCC3809PTR-2G4
UCC3809PTR-2 Match 100%	VIGOR ECONOMY PRIMARY SIDE CONTROLLER	UCC3809P-1 vs UCC3809PTR-2
UCC3809P-2 Match 100%	Texas Instruments IC REG CTRLR PWM CM 8VSSOP	UCC3809P-1 vs UCC3809P-2
UCC2809P-2 Match 100%	VIGOR UCC2809-2 ECONOMY PRIMARY SIDE C	UCC3809P-1 vs UCC2809P-2
UCC2809PTR-1 Match 81%	Texas Instruments IC REG CTRL BST FLYBK ISO 8VSSOP	UCC3809P-1 vs UCC2809PTR-1
