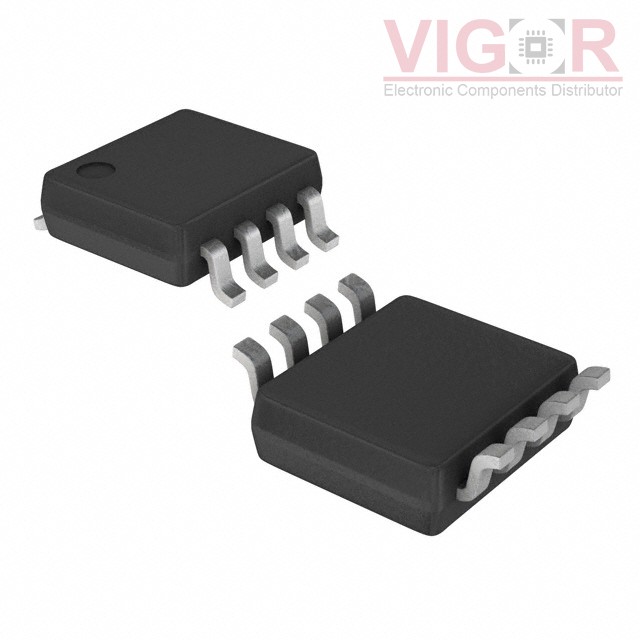

UCC2809PTR-1

Part No :: UCC2809PTR-1

Manufacturer: Texas Instruments

VIGOR # :: 3933445

Description: IC REG CTRL BST FLYBK ISO 8VSSOP

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: UCC2809PTR-1 PDF

Country of origin: -

Date code: -

UCC2809PTR-1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	No
Voltage - Breakdown:	-
Topology:	Boost, Flyback, Forward
Voltage - Start Up:	10 V
Voltage - Supply (Vcc/Vdd):	8V ~ 19V
Duty Cycle:	70%
Frequency - Switching:	1MHz
Power (Watts):	-
Fault Protection:	-
Control Features:	Frequency Control, Soft Start
Operating Temperature:	-55°C ~ 150°C (TJ)
Package / Case:	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:	8-VSSOP
